Modular FastFrame Exhibition Stand For 4m × 2m Spaces
Designed for a standard 4m × 2m exhibition footprint, this pre-configured FastFrame
package combines a wide 3800mm branded back wall with optional 1900mm side returns.
It is an ideal format for exhibitors who want maximum rear-wall impact while keeping
the stand relatively shallow and easy for visitors to approach.
Choose from a straight back wall, an L-shaped layout with one side return, or a
three-wall U-shaped configuration. Each option uses lightweight 950mm × 2400mm
folding aluminium FastFrame modules with seamless SEG fabric graphics and includes
the connectors and support feet required for the selected layout.
Choose Your 4m × 2m Stand Layout
The three packages below are designed around the same 3800mm back wall, with one
or two 1900mm side returns added where additional enclosure and graphic coverage
are required.

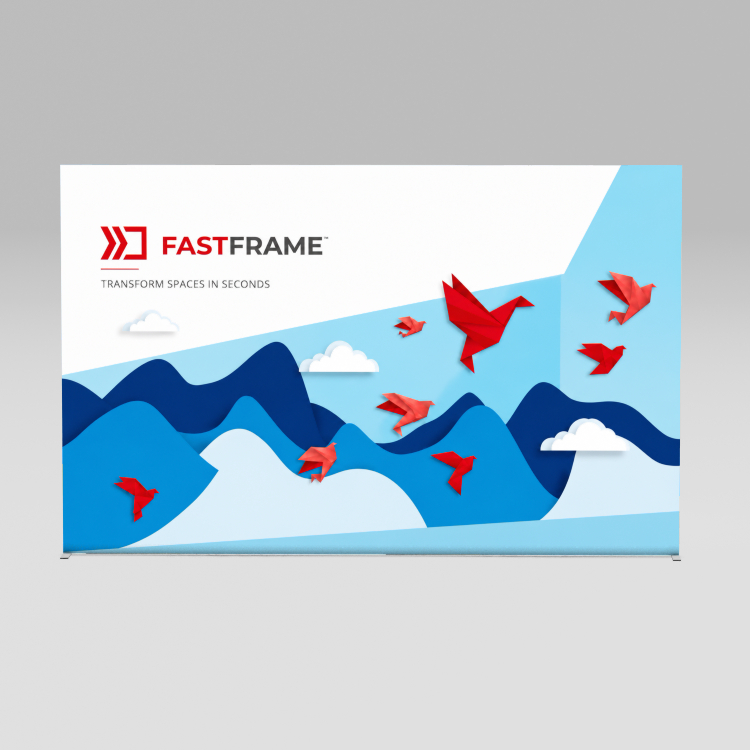

Back Wall Only
A straight 3800mm wide branded wall that leaves the front and sides of the
4m × 2m stand completely open. When positioned against an existing shell-scheme
or venue wall, the supplied side half feet allow the FastFrame to sit as close
as possible to the structure behind. If the display is being used freestanding
in an open area, use the standard full support feet instead to provide stability
to both the front and rear. Both support-foot options are supplied.

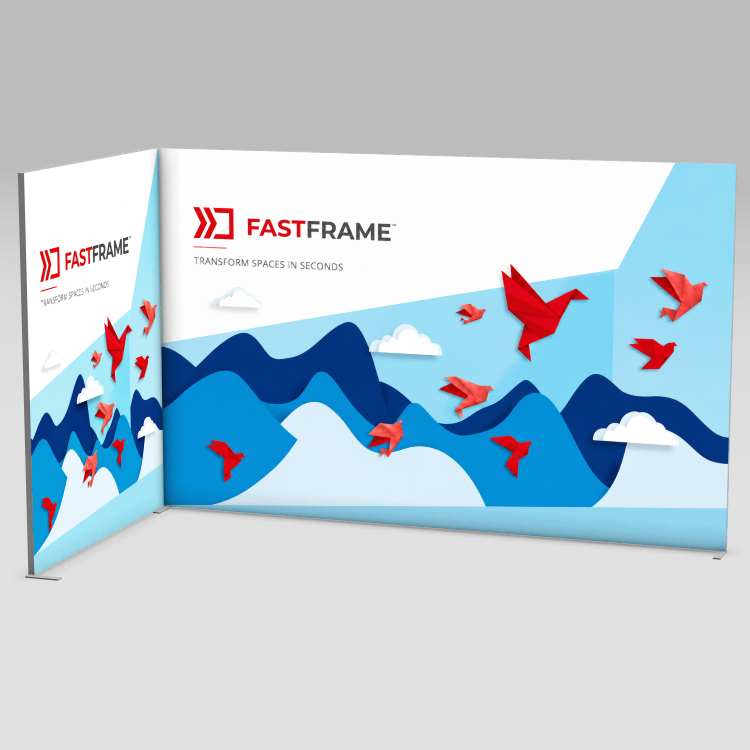

Back Wall + One Side Return
An L-shaped stand combining the 3800mm back wall with one 1900mm side return.
This gives extra branding and structure while retaining an open entrance from
the front and one side.
Back Wall + Two Side Returns
A U-shaped configuration with the full 3800mm rear wall and two 1900mm side
returns. This creates three continuous branded surfaces while keeping the front
of the stand open to visitors.
Package Options And Dimensions
Configuration
Frames Included
Graphic Dimensions
Overall Footprint
Typical Use
Back Wall Only
4 FastFrame modules
3800mm × 2400mm
3800mm wide × 220mm deep
Wide open-backed display for 4m spaces
Back Wall + One Side Return
6 FastFrame modules
Back wall: 3800mm × 2400mm
Side return: 1900mm × 2400mm
3840mm wide × 1940mm deep
L-shaped stand with one open side
Back Wall + Two Side Returns
8 FastFrame modules
Back wall: 3800mm × 2400mm
Side returns: 2 × 1900mm × 2400mm
3880mm wide × 1940mm deep
U-shaped stand with three branded walls
Technical Layout Drawings
The floor plans below show the finished dimensions, wall sizes and hardware
supplied with each 4m × 2m FastFrame configuration.
Back Wall Only
Back Wall + One Side Return
Back Wall + Two Side Returns
See How FastFrame Works
FastFrame uses expanding aluminium frames that unfold quickly and connect together
to form larger display walls. This means a substantial 4m wide exhibition backdrop
can be created without a complicated collection of separate poles and fittings.
The video below shows the folding framework, SEG fabric graphic system and modular
FastFrame principle in use.
Why Choose A FastFrame 4m × 2m Exhibition Stand?
A 4m × 2m floor space gives you considerably more frontage than a square 2m or 3m
stand while keeping the overall depth compact. That makes it well suited to
exhibitions where strong visibility across an aisle is important but floor space
behind the stand is limited.
The 3800mm FastFrame back wall provides a large continuous canvas for branding,
campaign graphics and product messaging. Adding a 1900mm return creates an
L-shaped corner display, while the three-wall version gives you a more enclosed
presentation space without exceeding the nominal 4m × 2m footprint.
The system is built from reusable 950mm × 2400mm FastFrame modules. The hardware
can therefore be broken down after the event and reconfigured for a different stand
size, used as individual display walls, or expanded with additional frames and new
graphics later.
Designed to stay inside the allocated floor space:
the L-shaped package measures approximately 3840mm wide × 1940mm deep and the
U-shaped package approximately 3880mm wide × 1940mm deep, leaving useful tolerance
within a nominal 4000mm × 2000mm exhibition area.
Practical Dimensions For 4m × 2m Exhibition Spaces
Exhibition stand dimensions are normally quoted as nominal floor-space sizes.
Shell-scheme posts, venue structures and neighbouring stands can reduce the truly
usable area, so it is useful for the display itself to finish slightly inside the
stated dimensions.
The FastFrame back wall measures 3800mm wide. With one 1900mm return added, the
overall footprint is approximately 3840mm × 1940mm. With two returns, the overall
width increases to approximately 3880mm while the depth remains 1940mm.
This provides a large amount of uninterrupted graphic area while preserving some
installation clearance around the structure.
The FastFrame Building Block
The 4m × 2m stand is built from FastFrame 950mm × 2400mm folding display
modules. Four frames positioned side by side create the 3800mm back wall, while
two frames create each 1900mm side return.
Each aluminium module is a self-contained expanding structure that opens from
its compact folded form and supports a tensioned SEG fabric graphic.
Because the same 950mm module is used throughout the FastFrame system, the
individual frames are not tied permanently to this particular floor-space size.
They can be reused independently or combined into different layouts for future
exhibitions.
Compact Folding Design
Even the full three-wall 4m × 2m package uses only eight folding FastFrame modules.
Each frame collapses into a compact unit for transport and storage, helping make
the system practical for exhibitors who attend multiple events.
On site, the scissor-style aluminium framework expands quickly and requires no
tools for the basic frame assembly. The frames are then positioned, connected and
supported before the SEG graphics are fitted.
Expanded Frame & Carry Bag
Folded For Transport & Storage
Seamless SEG Fabric Graphics
Silicone Edge Graphics are tensioned into the channel around the FastFrame to
create a smooth, frameless appearance. A flexible silicone strip sewn around the
edge of the fabric holds the graphic securely in position.
The 3800mm back wall uses one continuous 3800mm × 2400mm printed fabric graphic
spanning all four FastFrame modules. Each side return uses one continuous
1900mm × 2400mm graphic across its two modules.
Graphics are produced using full-colour dye-sublimation printing onto polyester
display fabric and can be replaced independently of the hardware for future
campaigns or events.
Support Feet For Wall-Backed Or Freestanding Displays
Standard full support feet project to the front and rear of the frame and should
be used when a FastFrame wall is freestanding in an open space, where stability is
required in both directions.
If the back wall is positioned against an existing shell-scheme or venue wall, the
supplied side half feet can be used instead. Because they project forwards rather
than requiring the same clearance behind the display, the FastFrame can be offered
up much closer to the wall behind and more of the allocated floor depth remains
usable.
Both full support feet and side half feet are supplied with the stand package, so
the support arrangement can be adapted to the installation.
Standard Support Foot
Side Half Support Foot
Connecting The 3800mm Back Wall And Side Returns
The four modules in the 3800mm back wall create three straight joints. FF-2WC
two-way connectors align adjoining frames at the top, while FF-SMF small middle
feet support each straight joint at floor level.
The Back Wall Only package therefore includes three FF-2WC connectors and three
FF-SMF feet. Adding one 1900mm side return increases this to four of each, and the
three-wall package uses five of each.
These components are included in the appropriate package so the hardware quantities
match the selected stand layout.
Small Middle Foot – FF-SMF
The FF-SMF supports the joint between adjoining FastFrame modules without a
large foot projecting into the usable stand area. The FF-2WC above it performs
the straight-frame alignment and connection.
Creating L-Shaped And U-Shaped Layouts
The FF-90C 90° Corner Connector Kit joins the back wall to a side return at a
right angle. One kit is included with the two-wall L-shaped package.
The U-shaped configuration has a return at each end of the back wall and
therefore includes two FF-90C kits. This gives the stand three branded faces
while keeping the entire front elevation open.
What Makes The 4m × 2m FastFrame Stand Different?
Designed specifically for nominal 4m × 2m exhibition spaces
Wide 3800mm continuous back-wall graphic
Optional 1900mm side returns for L-shaped or U-shaped layouts
Lightweight folding aluminium FastFrame modules
Tool-free frame expansion for quick on-site setup
Reusable hardware with replaceable SEG fabric graphics
Suitable for shell scheme and space-only exhibitions
Modular system can be expanded or reconfigured for future events
A Modular Exhibition Stand Beyond The 4m × 2m Footprint
Although these packages are configured specifically for a 4m × 2m floor space,
the individual FastFrame modules remain independent pieces of reusable hardware.
The four back-wall frames and two-frame side returns can be separated after the
event and used in different combinations, fitted with replacement graphics or
expanded with additional modules.
This makes FastFrame useful for exhibitors whose allocated stand size changes from
one venue to another, rather than requiring a completely new display system for
every event.
Frequently Asked Questions
Will This Stand Fit Inside A 4m × 2m Exhibition Space?
Yes. The straight back wall is 3800mm wide. The L-shaped configuration
measures approximately 3840mm wide × 1940mm deep, while the U-shaped layout
measures approximately 3880mm wide × 1940mm deep. This provides useful
clearance within a nominal 4000mm × 2000mm floor space.
How Many FastFrame Modules Are Included?
The Back Wall Package includes four 950mm × 2400mm modules. The Back Wall +
One Side Wall Package includes six frames, while the Back Wall + Two Side
Walls Package includes eight.
Can I Put The Back Wall Tight Against A Shell-Scheme Wall?
Yes. The supplied side half feet can be used when the FastFrame is positioned
against an existing wall, helping minimise the amount of space required behind
the display. If the wall is freestanding, use the standard full support feet
instead for stability to both the front and rear.
Are The Printed Graphics Included?
Yes. Full-colour SEG fabric graphics are included for every wall in the
configuration you select.
Is The 3800mm Back Wall Graphic One Continuous Print?
Yes. The back wall uses one continuous 3800mm × 2400mm SEG fabric graphic
spanning the four FastFrame modules, creating a clean uninterrupted printed
surface.
Can I Change The Layout At A Future Exhibition?
Yes. FastFrame is modular, so the individual frames can be separated and
rearranged, combined with additional modules or fitted with new graphics for
future events.
