Modular FastFrame Exhibition Stand For 5m × 4m Spaces
Designed for a standard 5m × 4m exhibition footprint, this FastFrame package
combines a wide 4750mm back wall with optional 3800mm side returns. The generous
4m stand depth provides plenty of usable floor space for counters, product displays,
demonstrations, seating or meeting areas.
Choose a straight back wall, an L-shaped configuration with one side return,
or a three-wall U-shaped stand. Each package uses reusable 950mm × 2400mm
folding aluminium FastFrame modules with seamless SEG fabric graphics, together
with the appropriate connectors and support feet for the selected layout.
Choose Your 5m × 4m Stand Layout
The three pre-configured options below all use the same 4750mm rear wall,
with one or two 3800mm side returns added where additional enclosure,
privacy or graphic coverage is required.

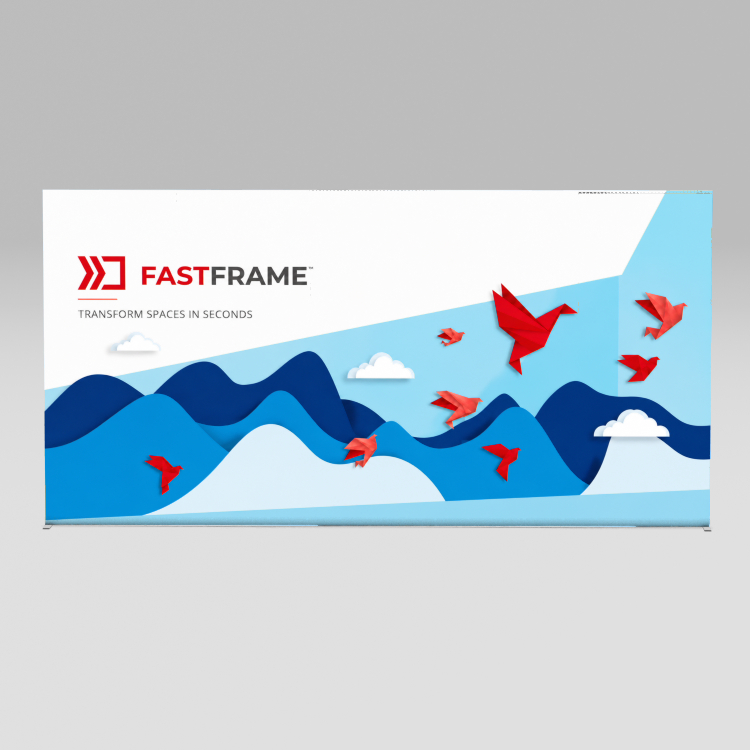

Back Wall Only
A straight 4750mm wide branded backdrop that leaves the front and sides
of the 5m × 4m stand open. When positioned against an existing shell-scheme
or venue wall, the supplied side half feet can be used so the display sits
close to the structure behind. If the wall is used freestanding, use the
standard full support feet instead for stability to the front and rear.
Both support-foot options are supplied.

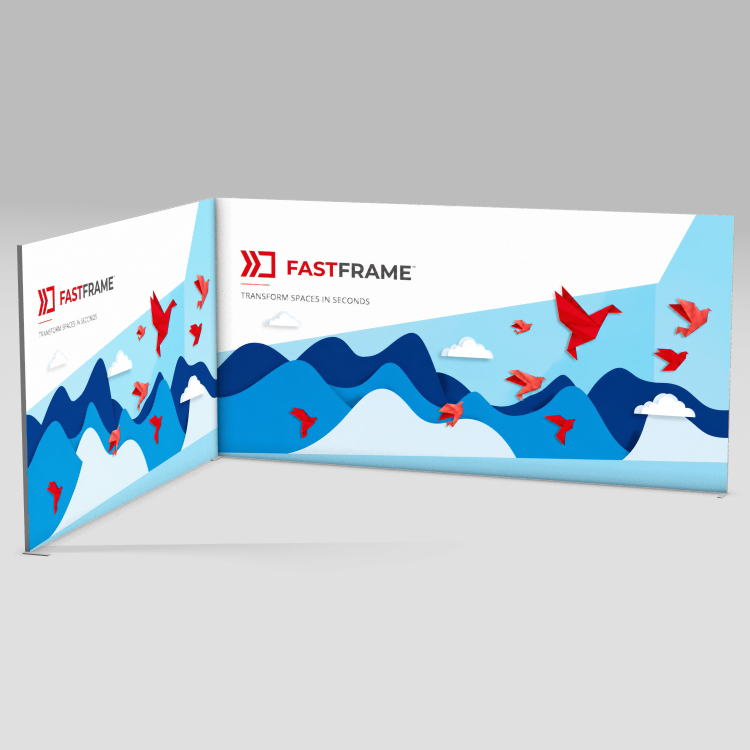

Back Wall + One Side Return
An L-shaped layout with a 4750mm back wall and a 3800mm side return.
This creates a substantial two-sided branded environment while keeping
the stand open from the front and one side for easy visitor access.

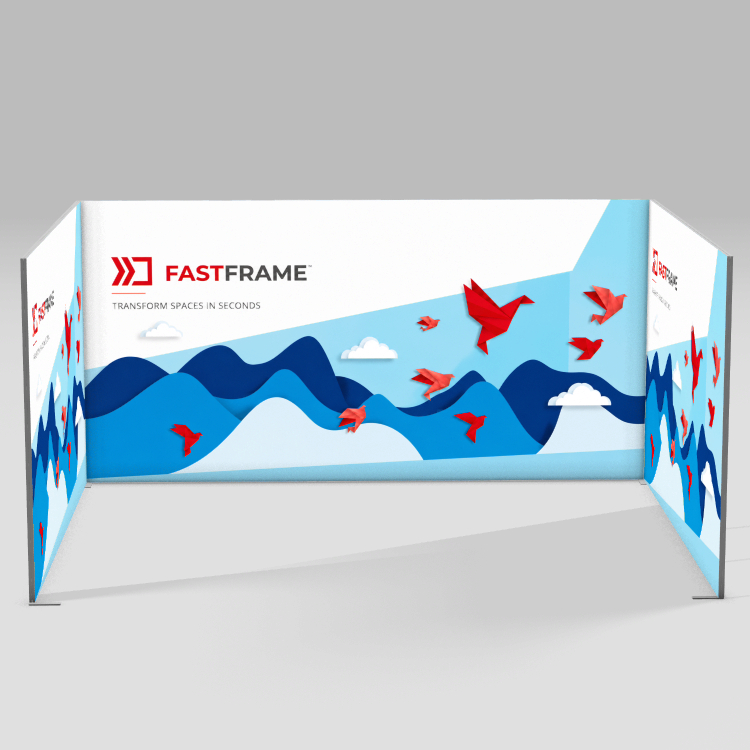

Back Wall + Two Side Returns
A U-shaped stand with the full 4750mm rear wall and two 3800mm side
returns. This creates three large graphic surfaces and a more defined
exhibition environment while leaving the front elevation open to visitors.
Package Options And Dimensions
Configuration
Frames Included
Graphic Dimensions
Overall Footprint
Typical Use
Back Wall Only
5 FastFrame modules
4750mm × 2400mm
4750mm wide × 220mm deep
Open display with a wide rear graphic wall
Back Wall + One Side Return
9 FastFrame modules
Back wall: 4750mm × 2400mm
Side return: 3800mm × 2400mm
4790mm wide × 3840mm deep
L-shaped corner or open-sided exhibition stand
Back Wall + Two Side Returns
13 FastFrame modules
Back wall: 4750mm × 2400mm
Side returns: 2 × 3800mm × 2400mm
4830mm wide × 3840mm deep
Three-wall U-shaped exhibition stand
Technical Layout Drawings
The floor plans below show the finished footprint, graphic dimensions and
hardware supplied with each 5m × 4m configuration.

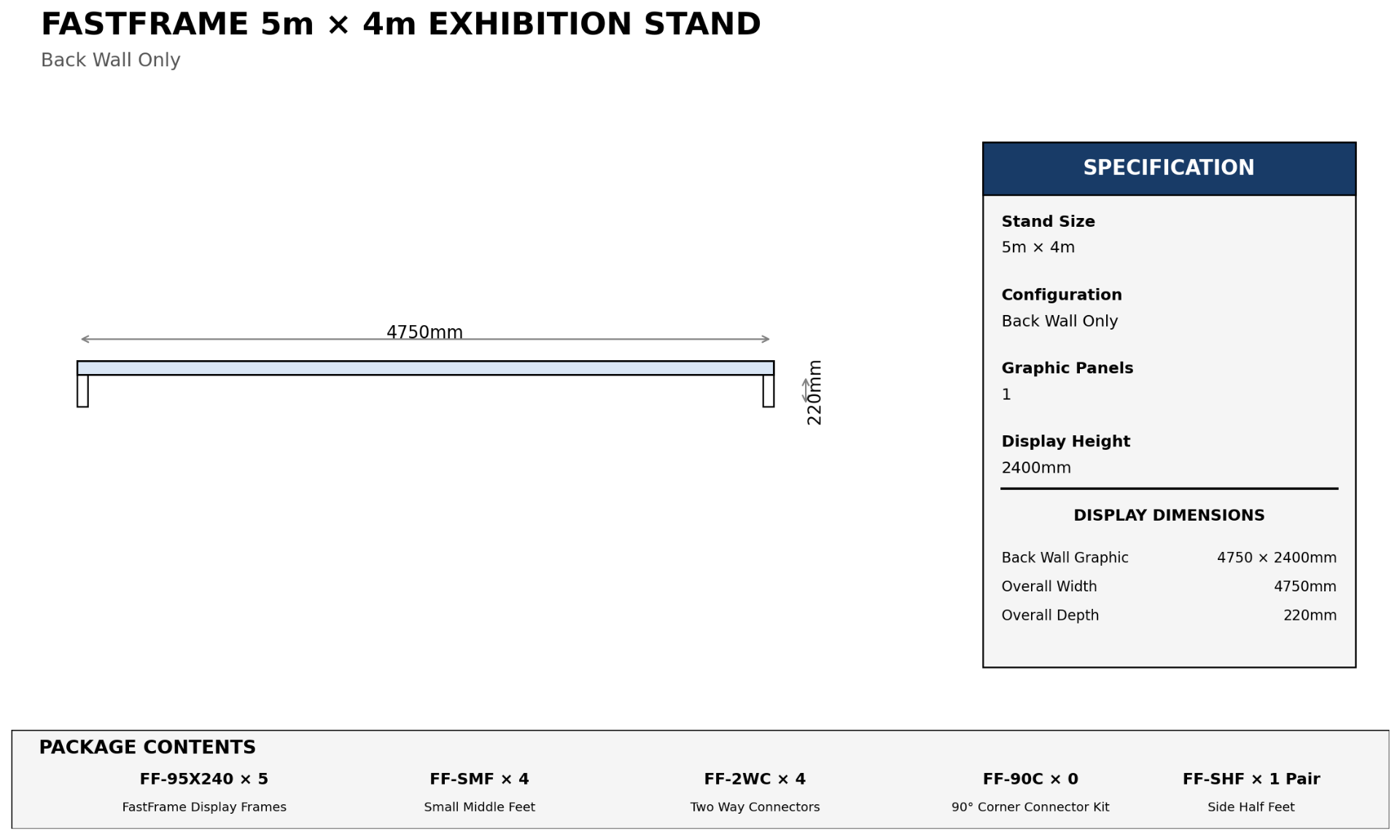

Back Wall Only

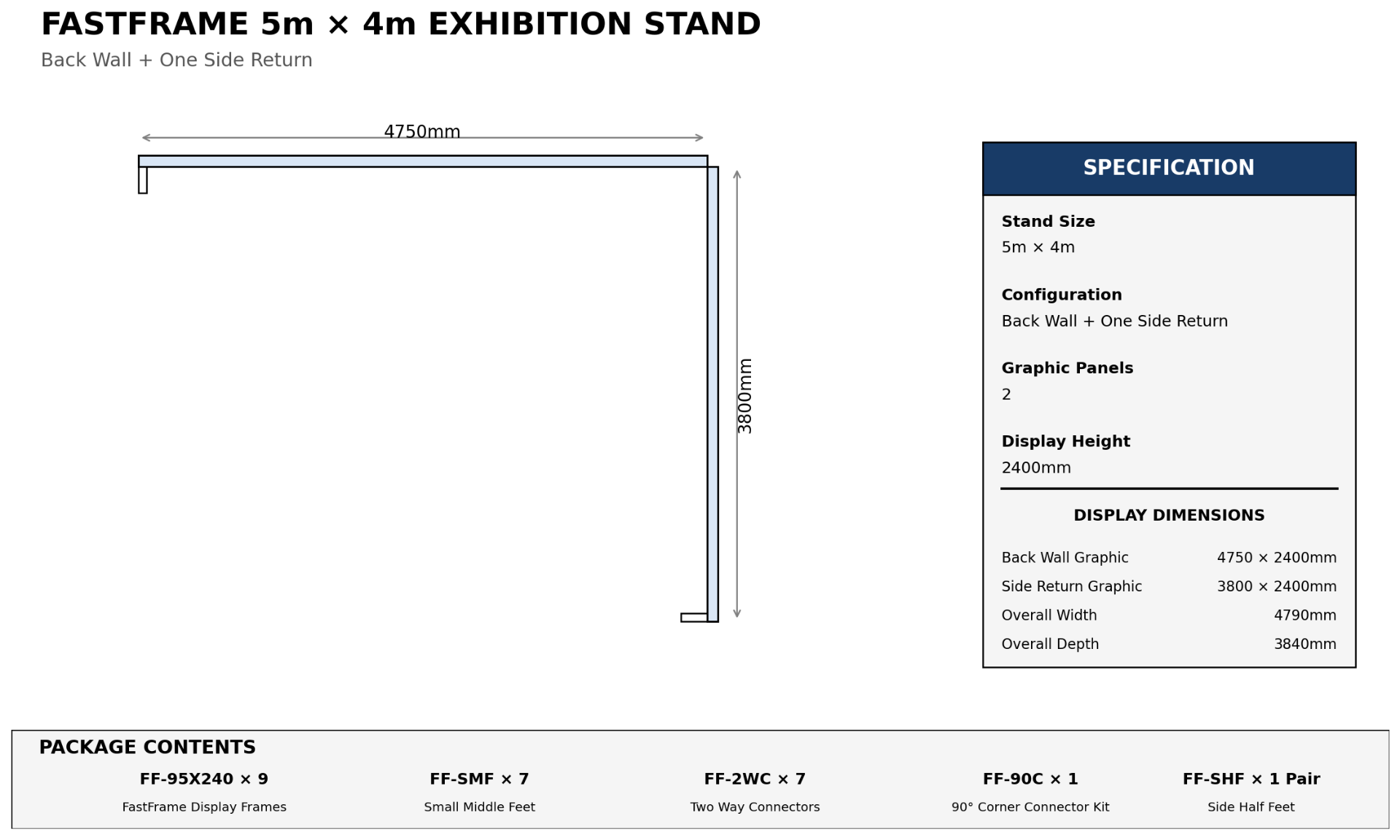

Back Wall + One Side Return

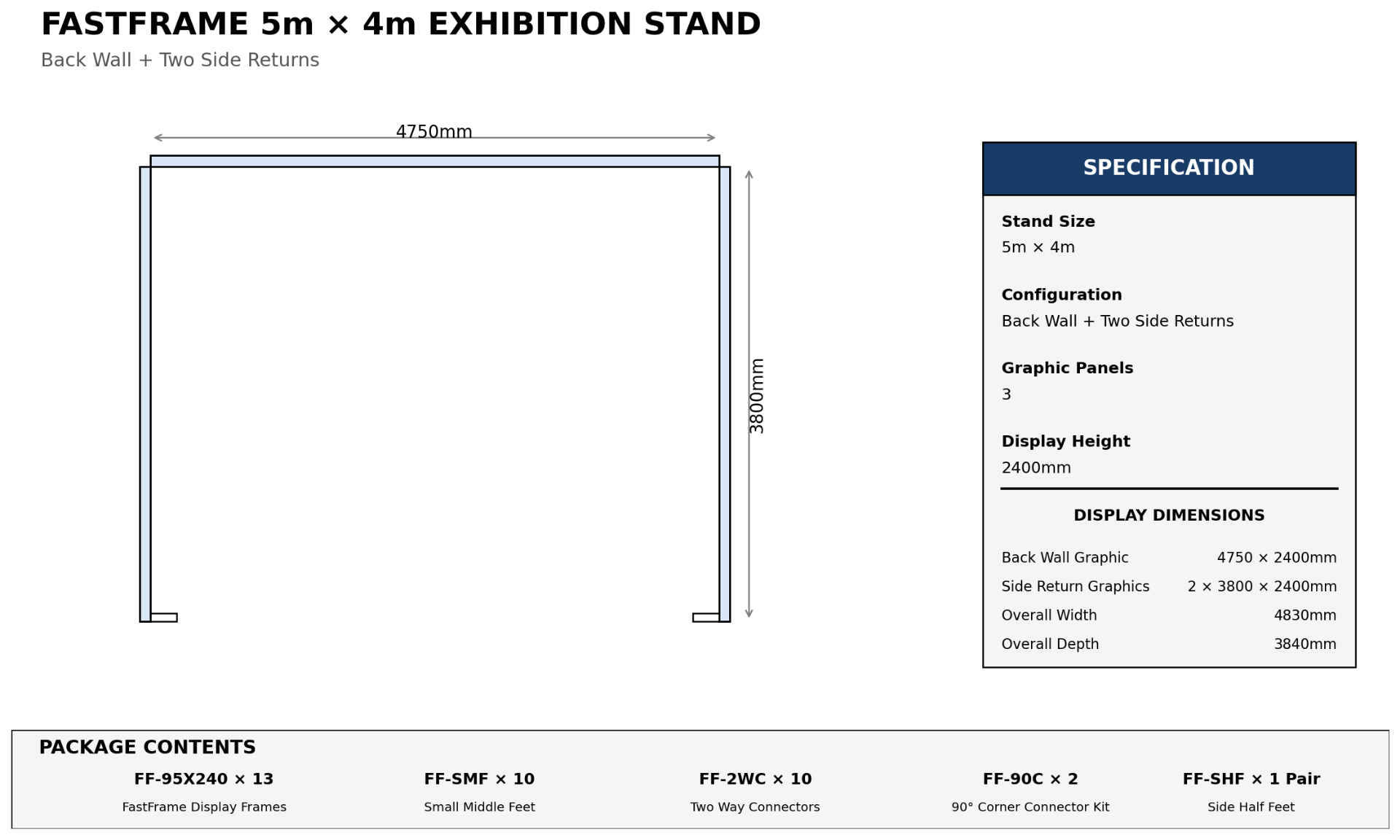

Back Wall + Two Side Returns
See How FastFrame Works
FastFrame uses folding aluminium display frames that expand quickly and connect
together to form larger exhibition walls. This allows a substantial 5m × 4m
exhibition stand to be assembled without the complicated construction associated
with many traditional modular stand systems.
The video below shows the folding framework, SEG fabric graphics and modular
connector system in use.
Why Choose A FastFrame 5m × 4m Exhibition Stand?
A 5m × 4m exhibition space offers a generous combination of frontage and
depth. The 4750mm rear wall provides a substantial visual backdrop, while
the optional 3800mm side returns extend almost the full depth of the nominal
stand space.
The additional depth makes this format particularly useful where the stand
needs to accommodate counters, product displays, seating, meeting areas or
demonstrations while retaining plenty of open visitor space.
Because every wall is assembled from reusable 950mm × 2400mm FastFrame modules,
the hardware can be separated after the event and reused in different layouts,
combined with additional modules or fitted with replacement graphics.
Built to sit comfortably within the allocated space:
the L-shaped configuration measures approximately 4790mm wide × 3840mm deep,
while the full U-shaped package measures approximately 4830mm wide × 3840mm deep.
Both remain inside a nominal 5000mm × 4000mm exhibition footprint.
Designed Around Real Exhibition Floor-Space Dimensions
Nominal exhibition stand dimensions do not always equal the exact usable area.
Shell-scheme posts, venue structures and neighbouring displays can all slightly
reduce the available space, which makes a little installation tolerance valuable.
The straight back wall measures 4750mm wide. With one 3800mm side return added,
the overall stand footprint becomes approximately 4790mm × 3840mm. With two side
returns, the overall width increases to approximately 4830mm while the depth
remains 3840mm.
This allows the stand to use most of the available 5m × 4m area for branding
while retaining useful clearance around the structure.

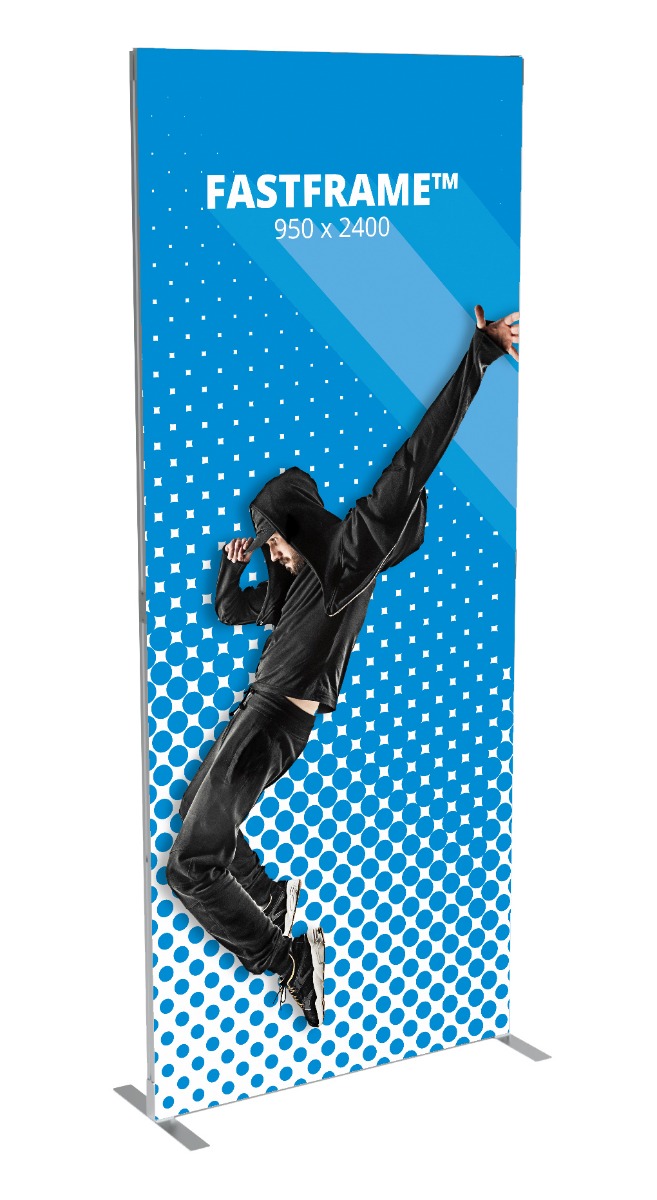

The FastFrame Building Block
The 5m × 4m package is based on FastFrame 950mm × 2400mm folding display
modules. Five modules positioned side by side create the 4750mm back wall,
while four modules form each 3800mm side return.
Each frame is a self-contained expanding aluminium structure. It folds down
compactly for storage and transport, then opens quickly on site before the
connectors, support feet and SEG graphics are fitted.
The repeated 950mm module size is what makes FastFrame so flexible. The same
frames used in this 5m × 4m package can later be separated and combined into
different exhibition layouts.
Compact Folding Design
Depending on the selected configuration, the 5m × 4m package contains five,
nine or thirteen FastFrame modules. Despite the size of the finished display,
each individual frame collapses into a compact folding unit for transport and storage.
On site, the scissor-style aluminium framework expands quickly and requires no
tools for the basic frame assembly. The modules are then aligned, connected and
supported before the fabric graphics are fitted.
Expanded Frame & Carry Bag
Folded For Transport & Storage
Continuous SEG Fabric Graphics
Silicone Edge Graphics are tensioned into the channel around each FastFrame wall,
creating a smooth, frameless appearance. A flexible silicone strip sewn around
the perimeter of the fabric holds the print securely in position.
The 4750mm back wall uses one continuous 4750mm × 2400mm graphic spanning five
FastFrame modules. Each side return uses one continuous 3800mm × 2400mm graphic
across its four modules, so the artwork is not broken up into a separate printed
panel for every individual frame.
Graphics are printed using full-colour dye-sublimation onto polyester display
fabric and can be replaced independently of the aluminium hardware whenever
your branding or campaign changes.
Support Feet For Wall-Backed Or Freestanding Displays
Standard full support feet project to the front and rear of the frame and should
be used when a FastFrame wall is freestanding in an open space, where support is
needed in both directions.
When the back wall is installed against an existing shell-scheme or venue wall,
the supplied side half feet can be used instead. Because they project forwards
rather than requiring the same clearance behind the frame, they allow the display
to sit much closer to the structure behind and preserve more usable stand depth.
Both full support feet and side half feet are supplied with the stand package,
allowing the support arrangement to be chosen to suit the venue.
Standard Support Foot

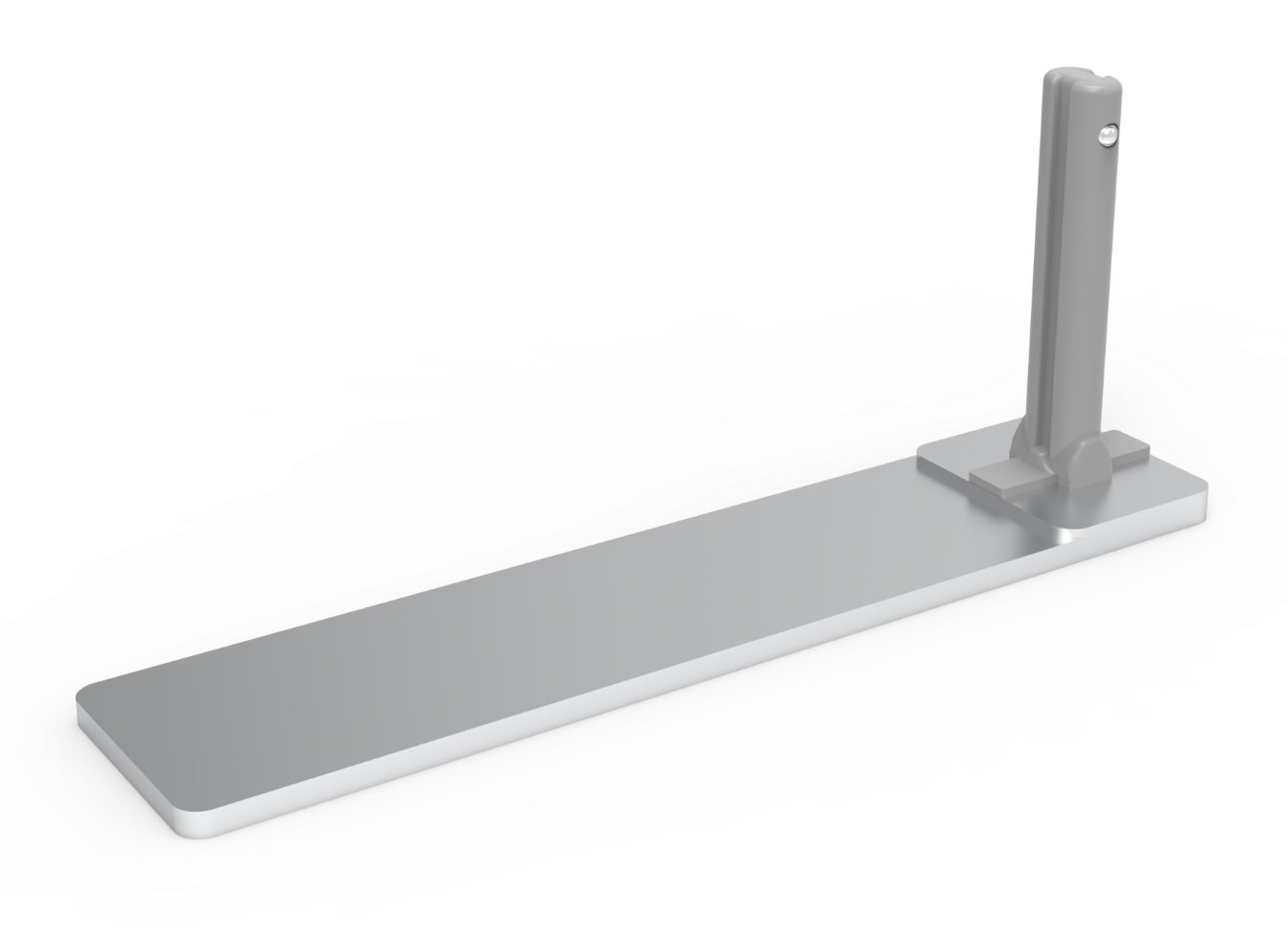

Side Half Support Foot
Connecting The Back Wall And Side Returns
The five modules in the 4750mm back wall create four straight joints.
Each 3800mm side return contains four modules and therefore adds three
further straight joints.
FF-2WC two-way connectors align adjoining frames at the top, while FF-SMF
small middle feet support the joints at floor level. The Back Wall Only
package uses four FF-2WC connectors and four FF-SMF feet; the two-wall
package uses seven of each; and the three-wall package uses ten of each.

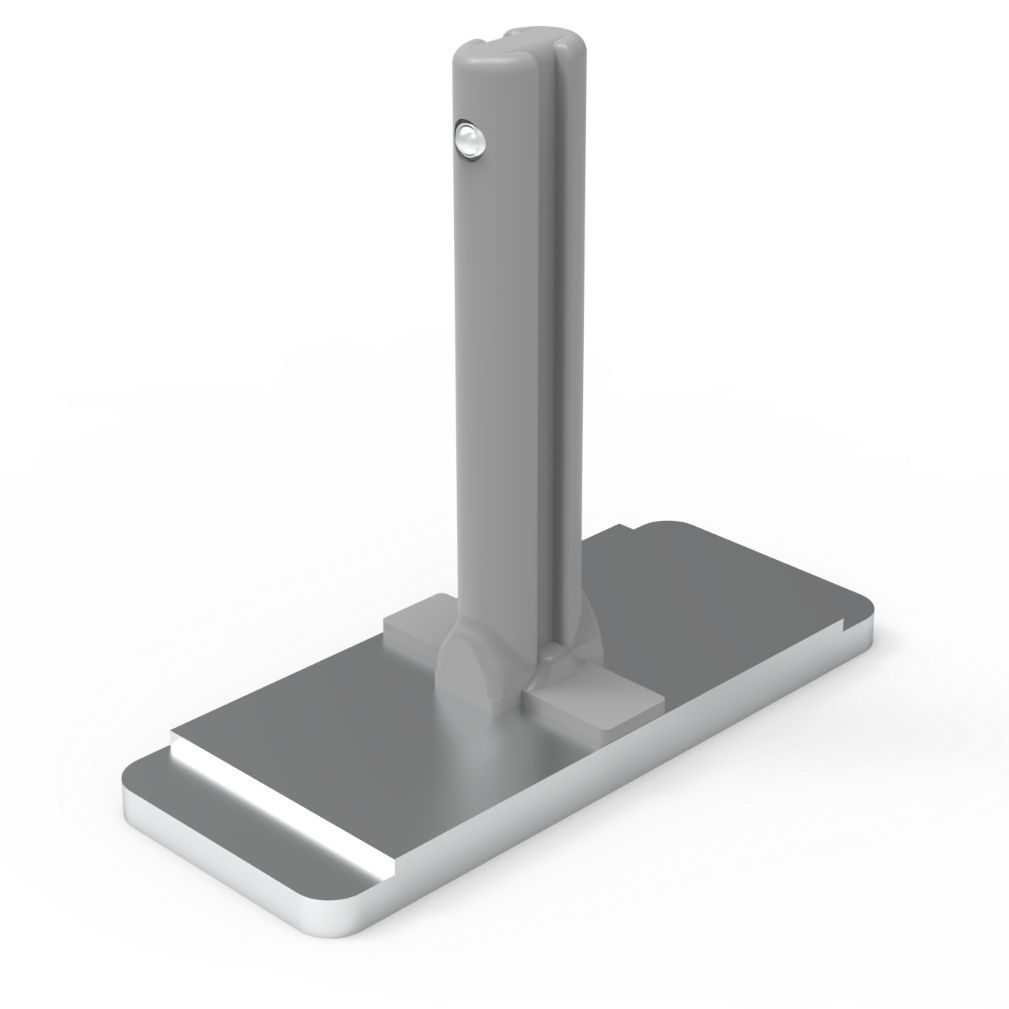

Small Middle Foot – FF-SMF
The FF-SMF sits at the joint between neighbouring FastFrame modules and
provides compact support at floor level. The FF-2WC above it is the
component that aligns and connects the adjoining frames.
Creating L-Shaped And U-Shaped Corners
The FF-90C 90° Corner Connector Kit joins a side return to the rear wall.
One kit is included with the Back Wall + One Side Return package to create
the L-shaped configuration.
The U-shaped package uses two corner kits, one at each end of the back wall.
This creates three substantial branded surfaces while leaving the front
of the 5m × 4m space open.
What Makes The 5m × 4m FastFrame Stand Different?
Designed specifically for nominal 5m × 4m exhibition spaces
4750mm continuous rear-wall graphic
Optional 3800mm side returns for two-wall or three-wall layouts
Lightweight folding aluminium FastFrame modules
Tool-free frame expansion for straightforward on-site setup
Reusable hardware with replaceable SEG fabric graphics
Suitable for shell scheme and space-only exhibitions
Modular system can be expanded or reconfigured for future events
A Reusable System For More Than One Stand Size
Although this package is pre-configured for a 5m × 4m exhibition footprint,
the FastFrame modules remain individual reusable components rather than a
permanently fixed stand.
The five-frame rear wall and four-frame side returns can be separated after
the event and used in different combinations, fitted with new graphics or
combined with additional modules.
This makes the system particularly useful for exhibitors who regularly book
different stand sizes and want to reuse the same core hardware from event to event.
Frequently Asked Questions
Will This Stand Fit Inside A 5m × 4m Exhibition Space?
Yes. The back wall is 4750mm wide. The L-shaped configuration measures
approximately 4790mm wide × 3840mm deep, while the full U-shaped layout
measures approximately 4830mm wide × 3840mm deep. This leaves useful
installation tolerance within a nominal 5000mm × 4000mm floor space.
How Many FastFrame Modules Are Included?
The Back Wall Package includes five 950mm × 2400mm frames. The Back Wall +
One Side Wall Package contains nine frames, while the Back Wall + Two Side
Walls Package contains thirteen.
Can The Back Wall Sit Close To A Shell-Scheme Wall?
Yes. When the display is positioned against an existing wall, the supplied
side half feet can be used to minimise the clearance needed behind the frame.
If the wall is freestanding, use the standard full support feet instead for
stability to both the front and rear.
Are The Printed Graphics Included?
Yes. Full-colour SEG fabric graphics are included for every wall in the
configuration selected.
Are The Graphics Continuous Across Multiple Frames?
Yes. The back wall uses one continuous 4750mm × 2400mm graphic across five
modules, while each 3800mm side return uses one continuous graphic across
four modules.
Can I Reconfigure The Stand For A Different Event?
Yes. The individual FastFrame modules can be separated, rearranged,
combined with additional frames or fitted with replacement graphics
for future exhibition layouts.
