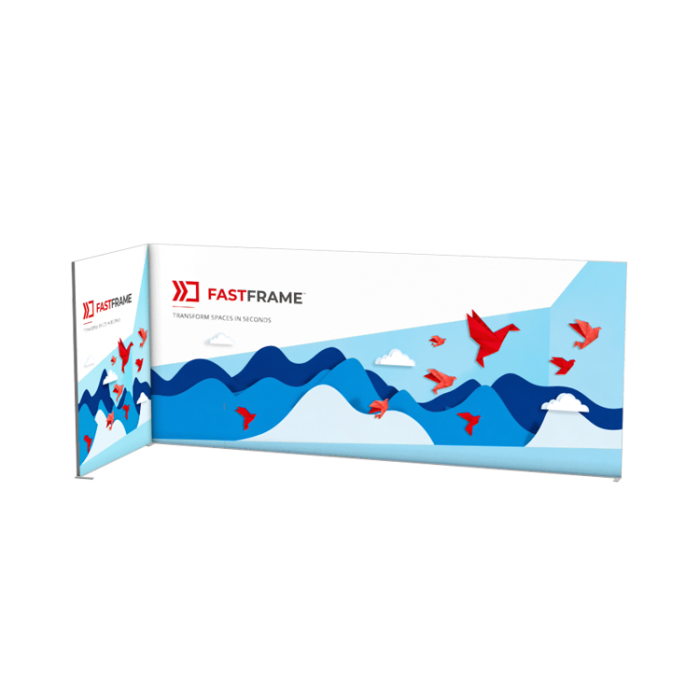

Modular FastFrame Exhibition Stand For 6m × 2m Spaces
Designed for a standard 6m × 2m exhibition footprint, this FastFrame package
creates an impressive 5700mm wide branded back wall with optional 1900mm side
returns. The wide, shallow format makes excellent use of stands with a long
frontage while retaining an open and accessible visitor area.
Choose a straight back wall, an L-shaped configuration with one side return,
or a three-wall U-shaped stand. Each package uses reusable 950mm × 2400mm
folding aluminium FastFrame modules with seamless SEG fabric graphics, together
with the appropriate connectors and support feet for the selected layout.
Choose Your 6m × 2m Stand Layout
All three configurations use the same 5700mm rear wall. One or two 1900mm
side returns can then be added to create an L-shaped or U-shaped exhibition
stand while remaining within a nominal 6m × 2m floor space.

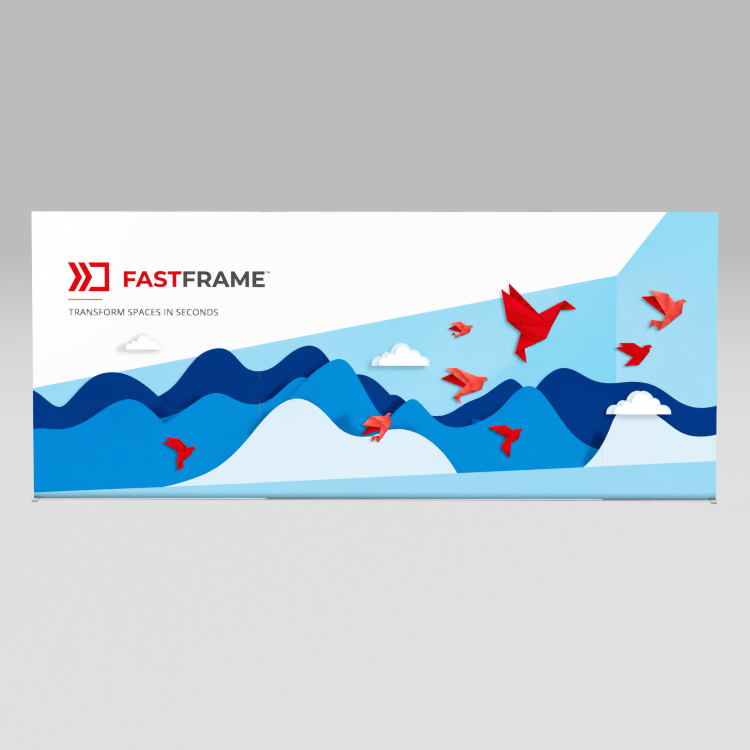

Back Wall Only
A substantial 5700mm wide branded backdrop that leaves the front and sides
of the exhibition space completely open. When positioned against an existing
shell-scheme or venue wall, the supplied side half feet allow the display to
sit close to the structure behind. If the wall is used freestanding, the
standard full support feet should be used instead for stability to the front
and rear. Both support-foot options are supplied.

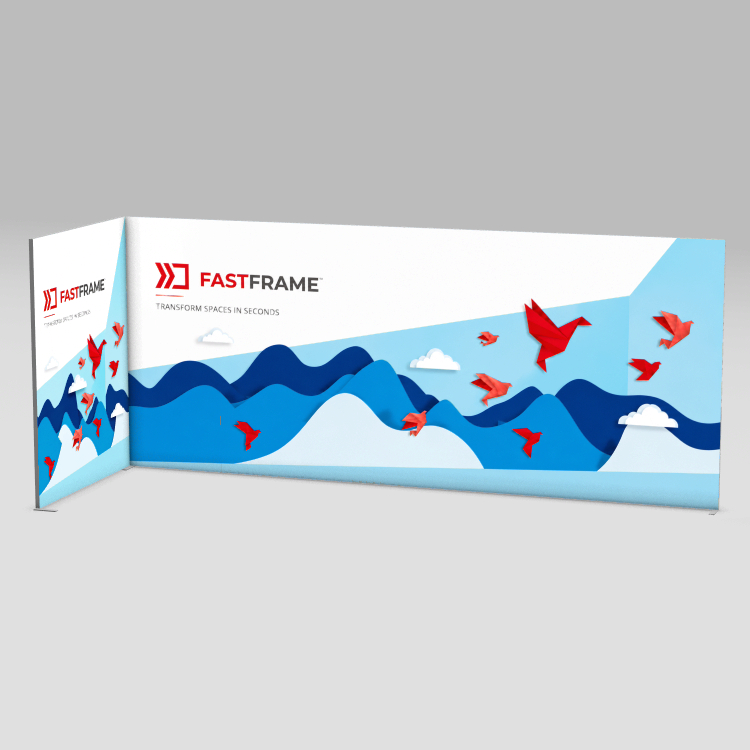

Back Wall + One Side Return
An L-shaped configuration combining the 5700mm back wall with a 1900mm
side return. This provides a second large graphic surface while leaving
the front and opposite side open for easy visitor access.

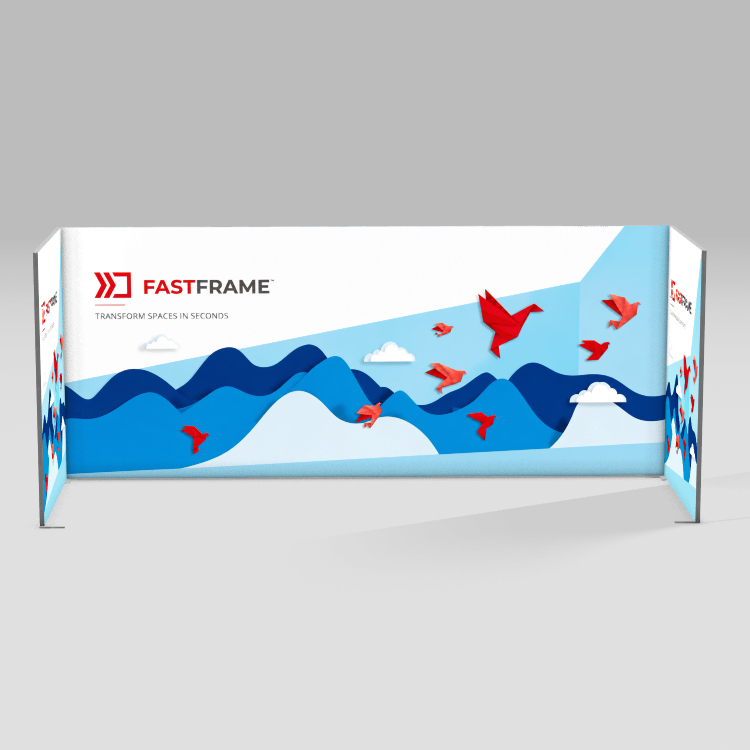

Back Wall + Two Side Returns
A U-shaped configuration with a 5700mm rear wall and two 1900mm side
returns. This creates three continuous branded surfaces around the stand
while leaving the full 6m frontage open to visitors.
Package Options And Dimensions
Configuration
Frames Included
Graphic Dimensions
Overall Footprint
Typical Use
Back Wall Only
6 FastFrame modules
5700mm × 2400mm
5700mm wide × 220mm deep
Wide open display with a substantial rear graphic wall
Back Wall + One Side Return
8 FastFrame modules
Back wall: 5700mm × 2400mm
Side return: 1900mm × 2400mm
5740mm wide × 1940mm deep
L-shaped exhibition stand with two branded walls
Back Wall + Two Side Returns
10 FastFrame modules
Back wall: 5700mm × 2400mm
Side returns: 2 × 1900mm × 2400mm
5780mm wide × 1940mm deep
Three-wall U-shaped exhibition stand
Technical Layout Drawings
The floor plans below show the finished footprint, graphic dimensions and
hardware supplied with each 6m × 2m configuration.

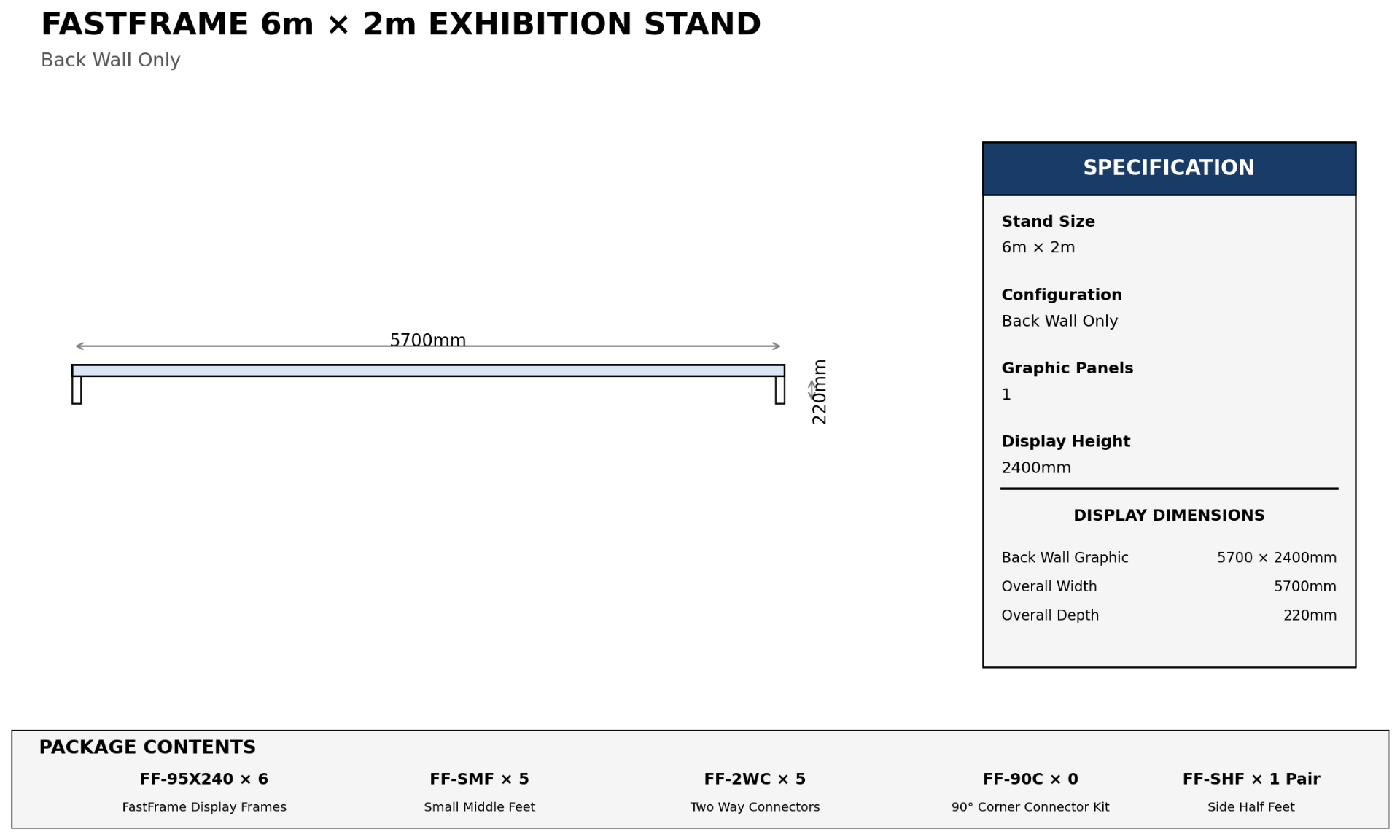

Back Wall Only

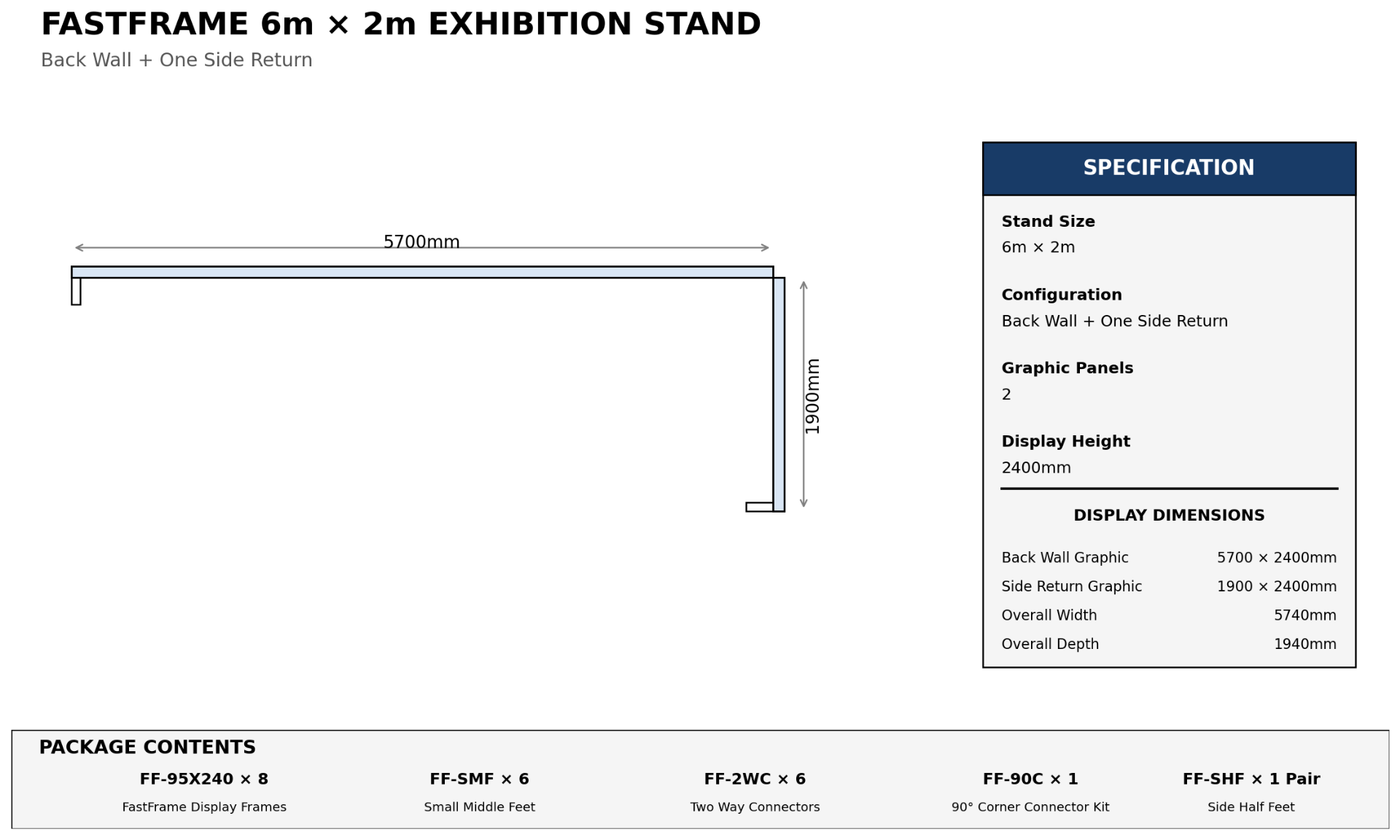

Back Wall + One Side Return

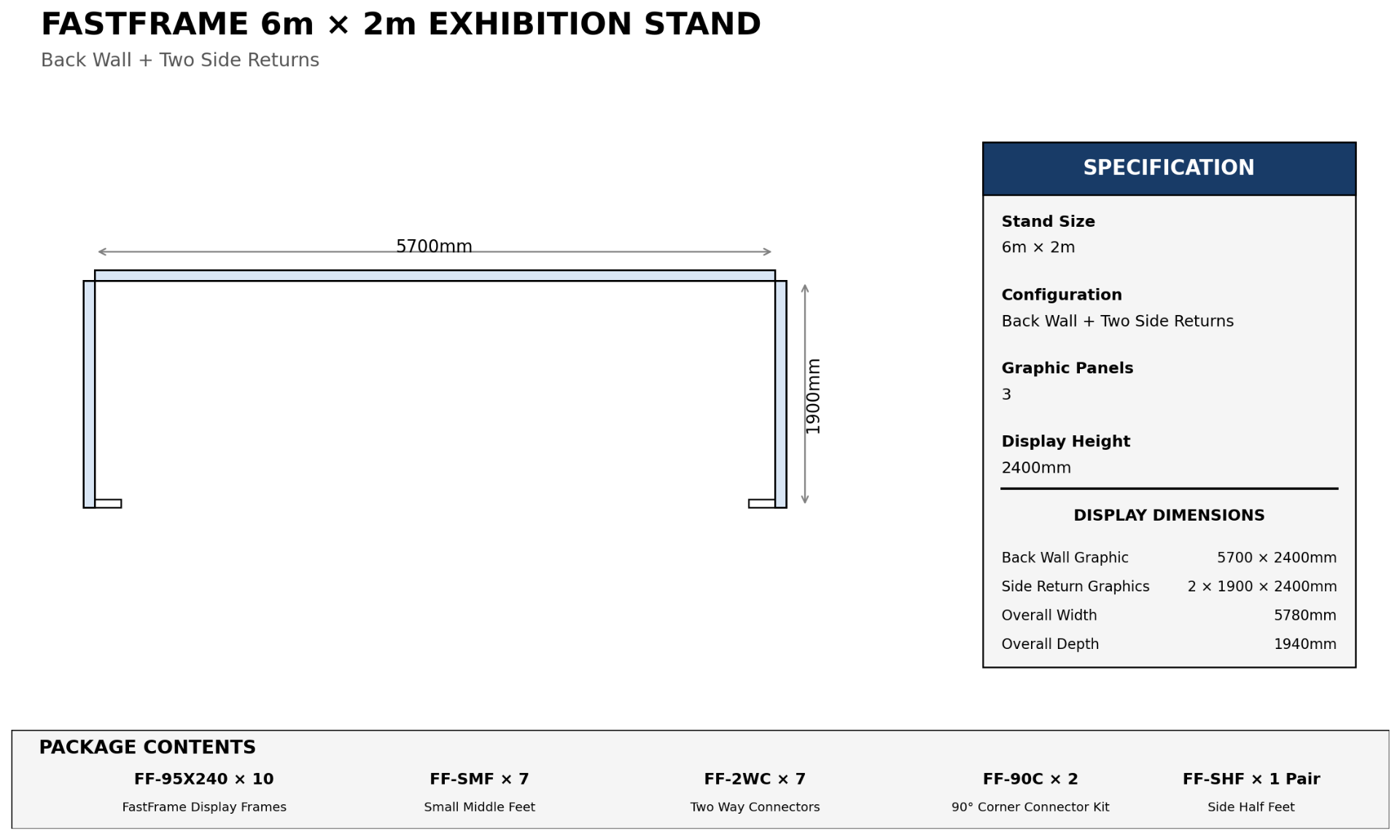

Back Wall + Two Side Returns
See How FastFrame Works
FastFrame uses folding aluminium display frames that expand quickly and connect
together to form larger exhibition walls. This makes it possible to create a
5700mm wide exhibition backdrop from six compact reusable modules without the
complicated construction associated with many traditional modular stand systems.
The video below shows the folding framework, SEG fabric graphics and modular
connector system in use.
Why Choose A FastFrame 6m × 2m Exhibition Stand?
A 6m × 2m exhibition space offers a particularly wide frontage relative to its
depth. The FastFrame system makes effective use of this format by creating a
5700mm continuous rear graphic wall while keeping the stand open and accessible.
Optional 1900mm side returns can be added where additional branding, enclosure
or separation from neighbouring stands is required. The relatively shallow
returns preserve the usable visitor space within the 2m stand depth.
Because every wall is assembled from reusable 950mm × 2400mm FastFrame modules,
the hardware can be separated after the event and reused in different layouts,
combined with additional modules or fitted with replacement graphics.
Designed to fit comfortably within the allocated space:
the L-shaped configuration measures approximately 5740mm wide × 1940mm deep,
while the full U-shaped package measures approximately 5780mm wide × 1940mm deep.
Both remain inside a nominal 6000mm × 2000mm exhibition footprint.
Designed Around Real Exhibition Floor-Space Dimensions
Nominal exhibition stand dimensions do not always equal the exact usable area.
Shell-scheme posts, venue structures and neighbouring displays can all slightly
reduce the available space, so allowing some installation tolerance is useful.
Six 950mm modules create a 5700mm straight back wall, leaving approximately
300mm of nominal width available within a 6m stand space. With one 1900mm side
return added, the overall footprint becomes approximately 5740mm × 1940mm.
With two side returns, the overall width increases to approximately 5780mm
while the depth remains 1940mm.
This allows the stand to make strong use of the available 6m × 2m space while
retaining useful clearance for installation.
The FastFrame Building Block
The 6m × 2m package is built from FastFrame 950mm × 2400mm folding display
modules. Six modules positioned side by side create the 5700mm back wall,
while two modules form each 1900mm side return.
Each frame is a self-contained expanding aluminium structure. It folds down
compactly for storage and transport, then opens quickly on site before the
connectors, support feet and SEG graphics are fitted.
The repeated 950mm module size is what makes FastFrame so flexible. The same
frames used in this 6m × 2m package can later be separated and combined into
different exhibition layouts.
Compact Folding Design
Depending on the selected configuration, the 6m × 2m package contains six,
eight or ten FastFrame modules. Despite the width of the finished display,
each individual frame collapses into a compact folding unit for transport
and storage.
On site, the scissor-style aluminium framework expands quickly and requires no
tools for the basic frame assembly. The modules are then aligned, connected and
supported before the fabric graphics are fitted.
Expanded Frame & Carry Bag
Folded For Transport & Storage
Continuous SEG Fabric Graphics
Silicone Edge Graphics are tensioned into the channel around each FastFrame wall,
creating a smooth, frameless appearance. A flexible silicone strip sewn around
the perimeter of the fabric holds the print securely in position.
The 5700mm back wall uses one continuous 5700mm × 2400mm graphic spanning six
FastFrame modules. Each side return uses one continuous 1900mm × 2400mm graphic
across its two modules, so the artwork is not broken up into a separate printed
panel for every individual frame.
Graphics are printed using full-colour dye-sublimation onto polyester display
fabric and can be replaced independently of the aluminium hardware whenever
your branding or campaign changes.
Support Feet For Wall-Backed Or Freestanding Displays
Standard full support feet project to the front and rear of the frame and should
be used when a FastFrame wall is freestanding in an open space, where support is
needed in both directions.
When the back wall is installed against an existing shell-scheme or venue wall,
the supplied side half feet can be used instead. Because they project forwards
rather than requiring the same clearance behind the frame, they allow the display
to sit much closer to the structure behind and preserve more usable stand depth.
Both full support feet and side half feet are supplied with the stand package,
allowing the support arrangement to be chosen to suit the venue.
Standard Support Foot
Side Half Support Foot
Connecting The Back Wall And Side Returns
The six modules in the 5700mm back wall create five straight joints.
Each 1900mm side return contains two modules and therefore adds one further
straight joint.
FF-2WC two-way connectors align adjoining frames at the top, while FF-SMF
small middle feet support the joints at floor level. The Back Wall Only
package uses five FF-2WC connectors and five FF-SMF feet; the two-wall
package uses six of each; and the three-wall package uses seven of each.
Small Middle Foot – FF-SMF
The FF-SMF sits at the joint between neighbouring FastFrame modules and
provides compact support at floor level. The FF-2WC above it is the
component that aligns and connects the adjoining frames.
Creating L-Shaped And U-Shaped Corners
The FF-90C 90° Corner Connector Kit joins a side return to the rear wall.
One kit is included with the Back Wall + One Side Return package to create
the L-shaped configuration.
The U-shaped package uses two corner kits, one at each end of the back wall.
This creates three branded surfaces while leaving the full 6m frontage open
to visitors.
What Makes The 6m × 2m FastFrame Stand Different?
Designed specifically for nominal 6m × 2m exhibition spaces
5700mm continuous rear-wall graphic
Optional 1900mm side returns for two-wall or three-wall layouts
Lightweight folding aluminium FastFrame modules
Tool-free frame expansion for straightforward on-site setup
Reusable hardware with replaceable SEG fabric graphics
Suitable for shell scheme and space-only exhibitions
Modular system can be expanded or reconfigured for future events
A Reusable System For More Than One Stand Size
Although this package is pre-configured for a 6m × 2m exhibition footprint,
the FastFrame modules remain individual reusable components rather than a
permanently fixed stand.
The six-frame rear wall and two-frame side returns can be separated after
the event and used in different combinations, fitted with new graphics or
combined with additional modules.
This makes the system particularly useful for exhibitors who regularly book
different stand sizes and want to reuse the same core hardware from event to event.
Frequently Asked Questions
Will This Stand Fit Inside A 6m × 2m Exhibition Space?
Yes. The back wall is 5700mm wide. The L-shaped configuration measures
approximately 5740mm wide × 1940mm deep, while the full U-shaped layout
measures approximately 5780mm wide × 1940mm deep. This leaves useful
installation tolerance within a nominal 6000mm × 2000mm floor space.
How Many FastFrame Modules Are Included?
The Back Wall Package includes six 950mm × 2400mm frames. The Back Wall +
One Side Wall Package contains eight frames, while the Back Wall + Two Side
Walls Package contains ten.
Can The Back Wall Sit Close To A Shell-Scheme Wall?
Yes. When the display is positioned against an existing wall, the supplied
side half feet can be used to minimise the clearance needed behind the frame.
If the wall is freestanding, use the standard full support feet instead for
stability to both the front and rear.
Are The Printed Graphics Included?
Yes. Full-colour SEG fabric graphics are included for every wall in the
configuration selected.
Are The Graphics Continuous Across Multiple Frames?
Yes. The back wall uses one continuous 5700mm × 2400mm graphic across six
modules, while each 1900mm side return uses one continuous graphic across
two modules.
Can I Reconfigure The Stand For A Different Event?
Yes. The individual FastFrame modules can be separated, rearranged,
combined with additional frames or fitted with replacement graphics
for future exhibition layouts.
