Modular FastFrame exhibition stand for 6m × 3m spaces
Create a professional exhibition stand for a 6m × 3m floor space using
our lightweight modular FastFrame display system. Choose from a simple
6m back wall, an L-shaped stand with one 3m side return, or a
U-shaped configuration with two 3m side walls.
Each package uses folding aluminium FastFrame modules with seamless
SEG fabric graphics to create a clean, frameless appearance. The
modular design makes the stand quick to assemble, straightforward to
transport and easy to reconfigure for future exhibitions.
Designed for 6m × 3m exhibition spaces:
the 5700mm back wall is formed from six 950mm FastFrame modules,
while each optional 2850mm side return uses three additional modules.
Choose Your 6m × 3m Stand Layout
Select the layout that best suits your exhibition space. All three
options use the same modular FastFrame system and can be expanded or
reconfigured as your requirements change.

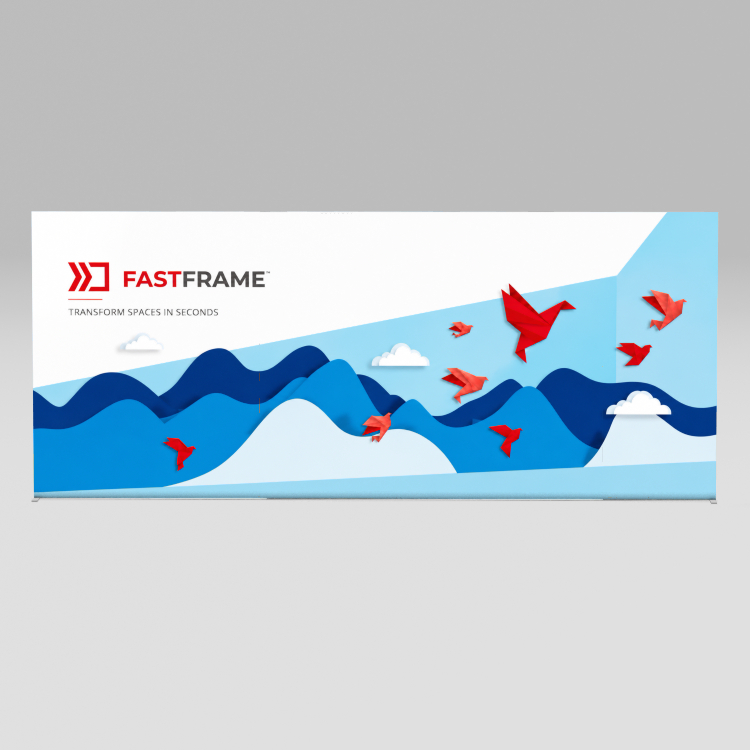

Back Wall Package (1 Wall)
A wide 5700mm graphic back wall formed from six FastFrame
modules. Ideal when you want maximum graphic impact while
keeping the front and sides of the exhibition space completely open.

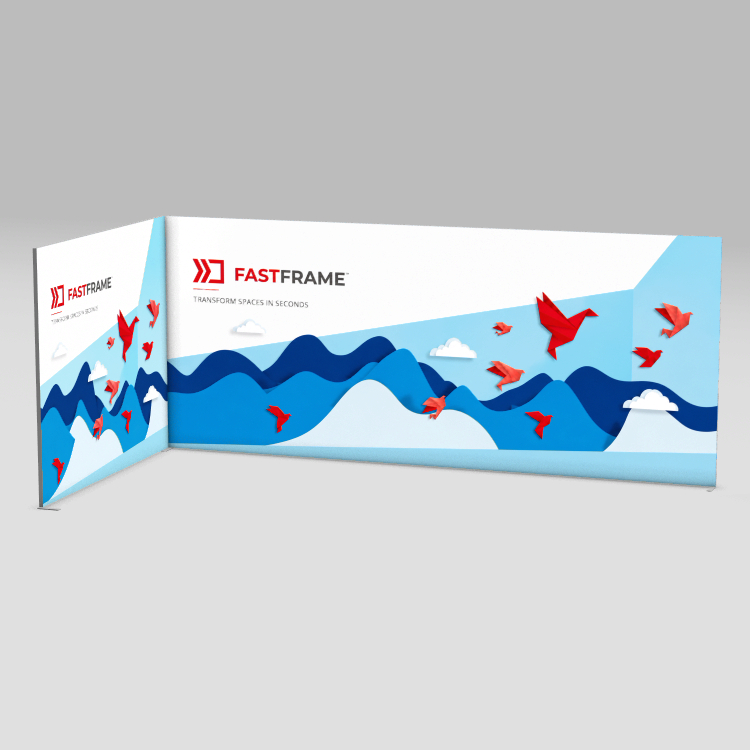

Back Wall + One Side Wall Package (2 Walls)
Adds a 2850mm side return to create an L-shaped stand.
This provides additional graphic space and helps define the
exhibition area while retaining an open approach from two sides.

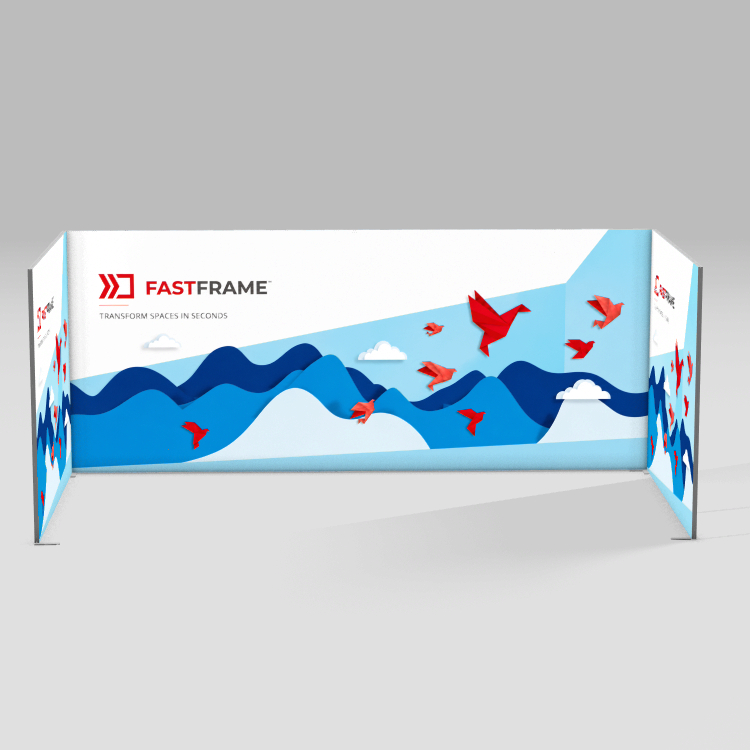

Back Wall + Two Side Walls Package (3 Walls / U-Shape)
Adds a 2850mm return at each end of the back wall to create
a U-shaped stand with three continuous graphic elevations and
a clearly defined exhibition space.
Package Options And Dimensions
The nominal stand size is 6m × 3m. The actual FastFrame dimensions
are slightly smaller, allowing the display to fit comfortably within
the allocated exhibition floor space.
Package
Graphic Dimensions
Overall Footprint
FastFrame Modules
Back Wall Package
Back wall: 5700 × 2400mm
5700 × 220mm
6
Back Wall + One Side Wall
Back wall: 5700 × 2400mm
Side return: 2850 × 2400mm
5740 × 2890mm
9
Back Wall + Two Side Walls
Back wall: 5700 × 2400mm
Side returns: 2 × 2850 × 2400mm
5780 × 2890mm
12

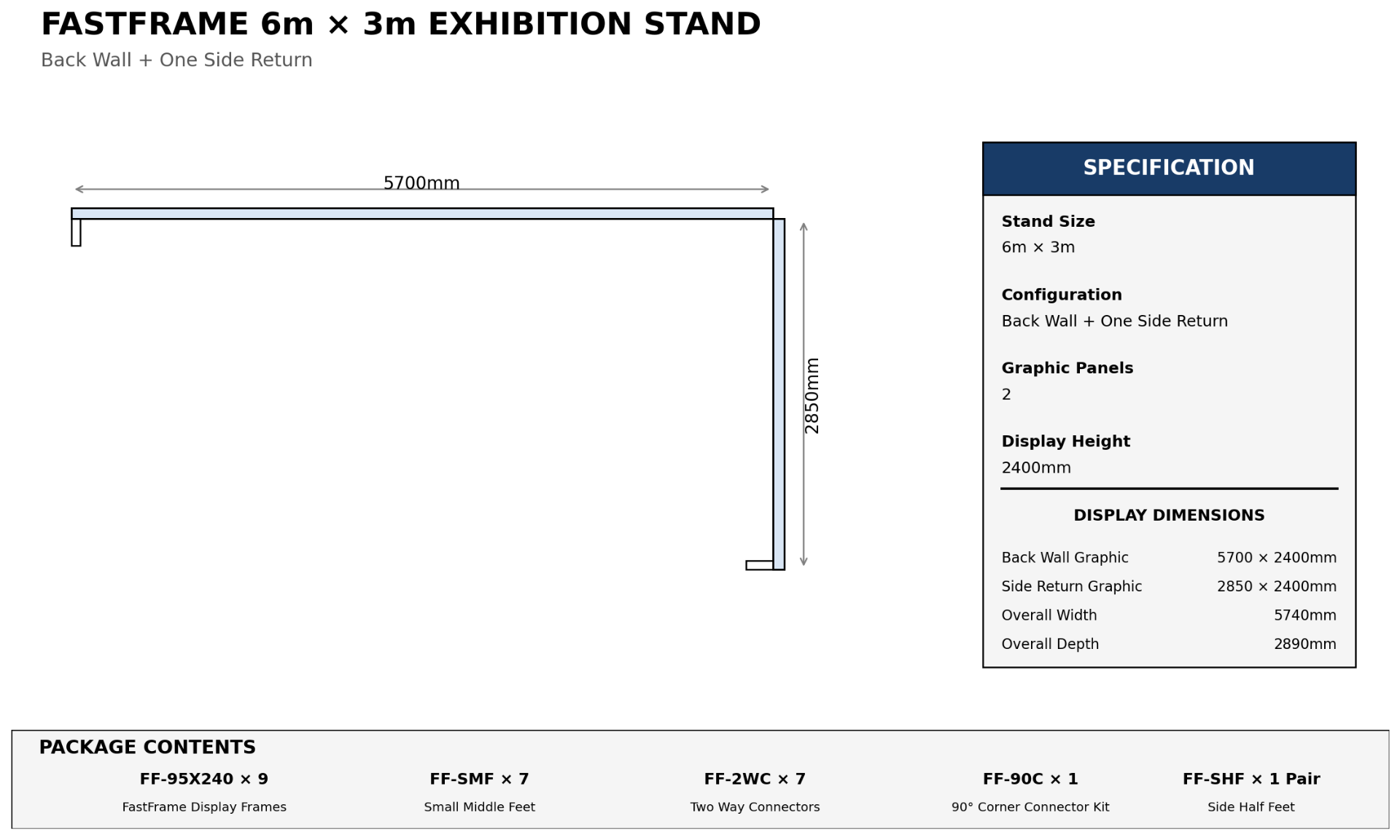

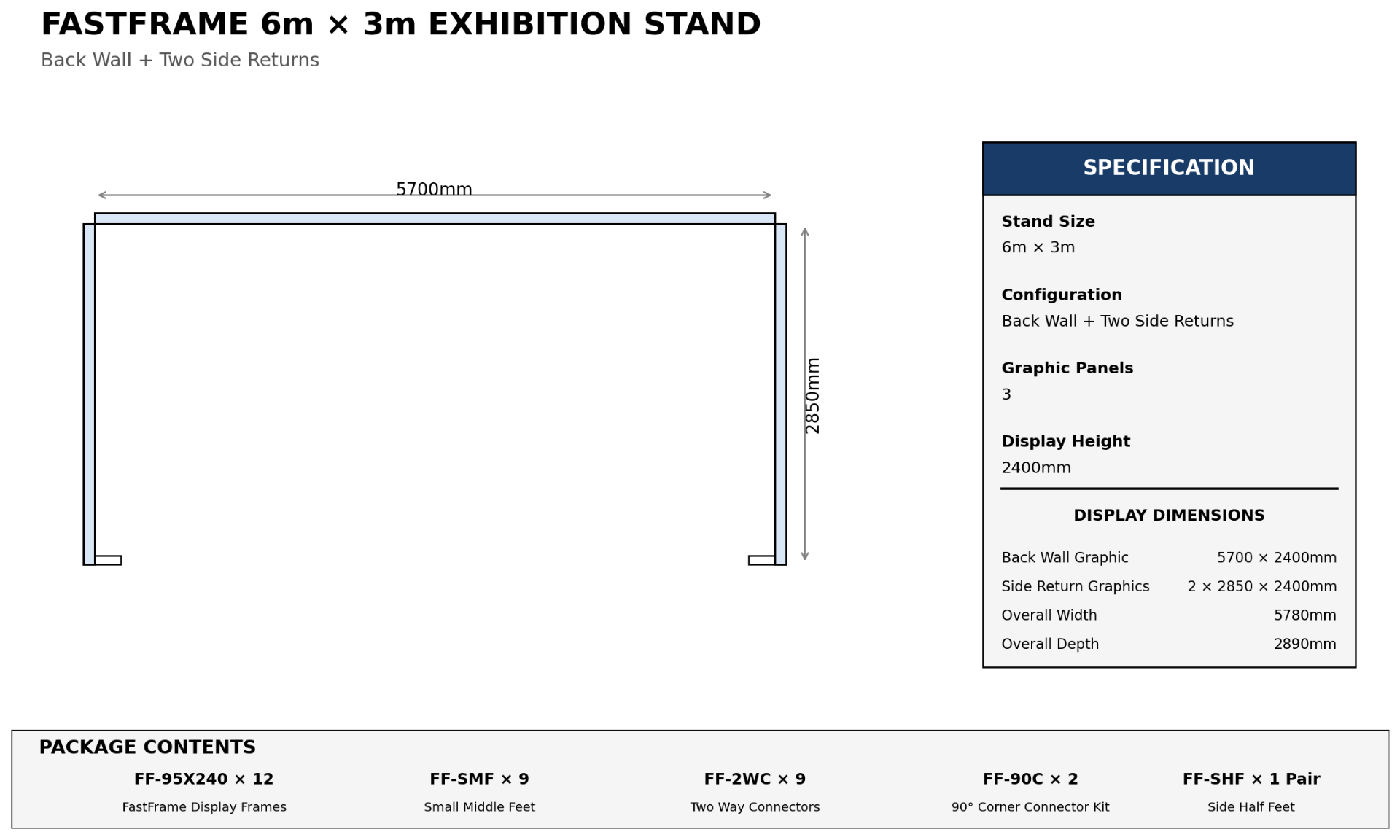

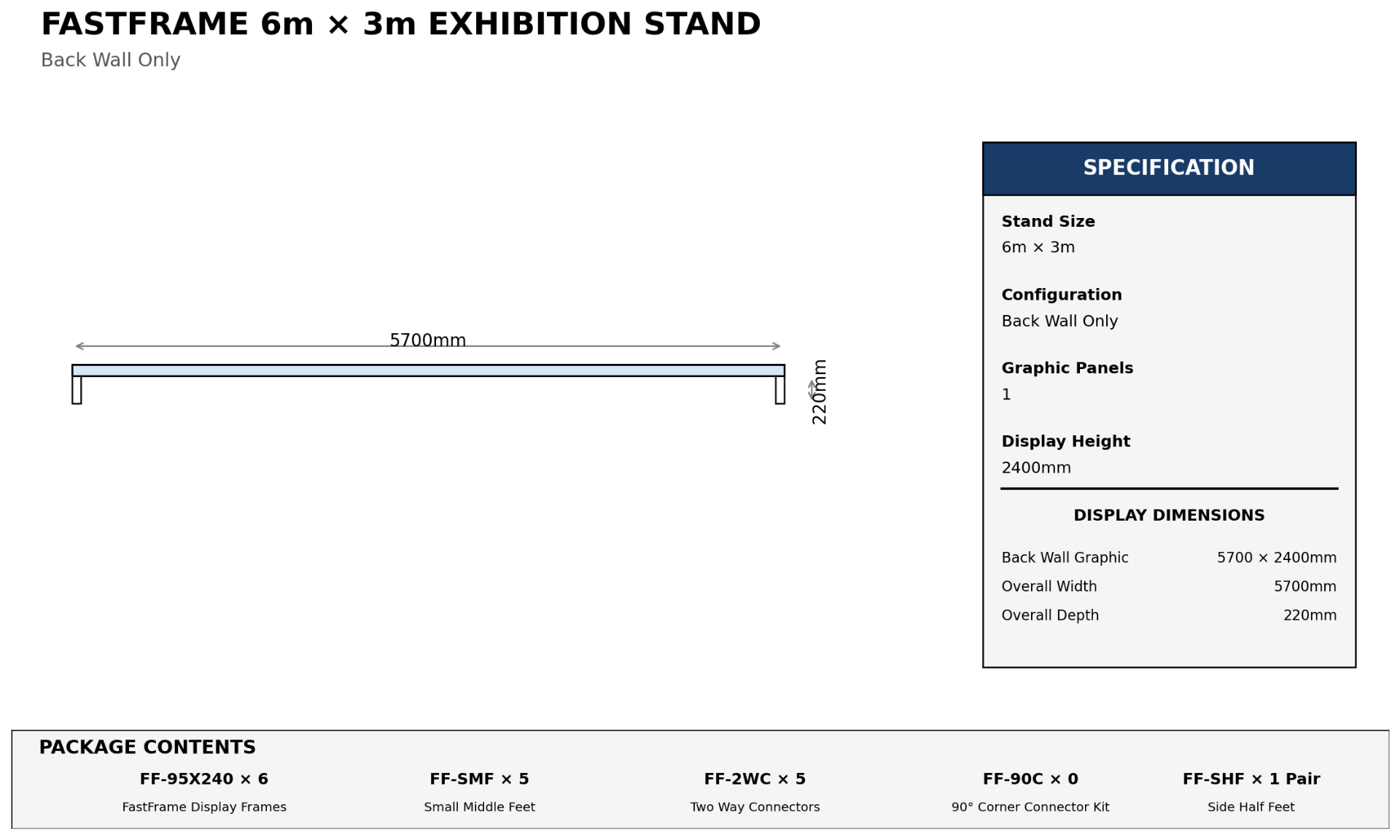

Technical Layout Drawings
The floor plans below show the actual assembled dimensions and
component quantities for each 6m × 3m FastFrame package.
See How FastFrame Works
FastFrame uses a folding aluminium frame that opens out in seconds.
Individual modules can then be connected together to build larger
exhibition walls and complete multi-wall stand layouts.
Why Choose A FastFrame 6m × 3m Exhibition Stand?
A 6m × 3m stand provides a substantial 6m-wide presentation area
while retaining the familiar 3m exhibition depth. FastFrame makes it
possible to create this larger display using compact, reusable
modules rather than a permanent or custom-built structure.
Designed specifically for 6m × 3m exhibition stand spaces
Available as a back wall, L-shaped or U-shaped configuration
Seamless SEG fabric graphics with a clean, frameless appearance
Lightweight folding aluminium FastFrame modules for easy transport and storage
Tool-free assembly with quick on-site setup
Fully modular system that can be expanded or reconfigured for future events
Suitable for shell scheme and space-only exhibition stands
Supplied as a complete stand package including frames, connectors and support feet
Full-colour dye-sublimation fabric graphics included
Designed Around Real Exhibition Floor-Space Dimensions
Exhibition stand spaces are normally sold using nominal dimensions,
but it is important that the physical display fits within the
allocated area. The FastFrame 6m × 3m packages have therefore been
configured to remain within a nominal 6000 × 3000mm stand space.
The main back wall measures 5700mm wide rather than the full 6000mm.
When a side return is added, the overall depth is approximately
2890mm. This leaves useful tolerance around the display rather than
attempting to fill every millimetre of the booked floor space.
The 6m back wall uses six 950mm FastFrame modules to create a
5700mm-wide continuous graphic display. Each 3m side return uses
three further modules to create a 2850mm graphic wall.
The FastFrame Building Block
Every configuration is built around the same
FF-95X240 FastFrame module, measuring
950mm wide × 2400mm high.
Six modules placed side by side create the 5700mm back wall
used throughout this 6m × 3m package range. A further three
modules are used for each optional 2850mm side return.
Because the stand is assembled from standard modules rather
than a single large structure, the individual frames remain
manageable for transport, handling and storage.
Compact Folding Design
FastFrame modules use a folding scissor-style aluminium structure.
The frame opens out to its full 950 × 2400mm display size and folds
down again into a much more compact format when the exhibition is over.
Quick To Deploy
The lightweight aluminium frame expands quickly on site,
helping reduce the time required to construct a larger
modular exhibition display.
Compact For Transport
Once folded, each module occupies far less space than its
assembled size, making a multi-module 6m × 3m stand easier
to transport and store between events.
Continuous SEG Fabric Graphics
FastFrame uses tensioned SEG fabric graphics. A silicone edging is
sewn around the perimeter of the printed fabric and pushed into the
channel around the aluminium frame.
When several FastFrame modules are joined together, a single larger
fabric graphic can span the connected frames. This means the 5700mm
back wall can display one continuous graphic rather than six
individual printed panels.
The same principle applies to the 2850mm side returns, allowing each
wall of the stand to have a clean, uninterrupted printed surface.
Replacement graphics can also be produced separately when campaign
artwork changes.
One graphic per wall: the back wall uses one
5700 × 2400mm SEG graphic, while each optional side return uses one
2850 × 2400mm SEG graphic.
Support Feet For Wall-Backed Or Freestanding Displays
The support arrangement can be adapted depending on where the
FastFrame display is being installed. This is particularly useful
when the back wall is positioned against an existing shell-scheme
or venue wall.
Full Support Feet
Full support feet project approximately 180mm to the front
and rear of the frame. They are suitable when a FastFrame
wall is being used as a freestanding display in an open
exhibition space and requires stability in both directions.
Side Half Feet
Side half feet project to the front only. They can be used
when the display is positioned against an existing wall,
allowing the FastFrame back wall to sit much closer to the
shell-scheme or venue structure behind it.
Connecting The Back Wall And Side Returns
Adjacent FastFrame modules are aligned and secured using
simple connecting components. The
FF-2WC two-way connector connects adjoining
frames at the top, while the
FF-SMF small middle foot supports the joint
between the modules at floor level.
The 5700mm back wall contains five straight joints between
its six FastFrame modules. Each 2850mm side return contains
two further straight joints between its three modules.
This modular connection method allows the individual frames
to behave as one larger display wall while still being easy
to separate after the event.
Creating L-Shaped And U-Shaped Corners
The two larger package configurations use
FF-90C 90° corner connector kits to attach
the 2850mm side returns to the 5700mm back wall.
The two-wall package requires one corner connection to create
an L-shaped layout. The three-wall package uses two corner
connections to form the U-shaped configuration.
Because the corners are created using dedicated modular
connectors, the same frames can later be separated and used
in different configurations rather than being permanently
committed to a particular stand layout.
What Makes The 6m × 3m FastFrame Stand Different?
The 6m × 3m format provides considerably more back-wall display
space than the smaller FastFrame packages while retaining a
relatively compact 3m stand depth. This makes it particularly useful
where a long branded backdrop is important but the available floor
space does not require a deeper stand.
With six modules across the back, the stand provides a
5700mm-wide continuous graphic area. Adding one or
two 2850mm side returns creates additional branded surfaces without
exceeding the nominal 6m × 3m exhibition footprint.
The wider back wall also gives greater flexibility when positioning
counters, product displays, furniture or demonstration areas across
the front of the stand, while the optional side walls can be used to
create a more enclosed and clearly defined exhibition environment.
A Reusable System For More Than One Stand Size
One of the main advantages of FastFrame is that the individual
modules are not permanently tied to a 6m × 3m layout. After the
exhibition, the frames can be separated and reused individually or
combined in different quantities for future events.
For example, the six modules used to create the 5700mm back wall can
be divided into smaller display walls, while frames from the side
returns can be added or removed when a future exhibition space has
different dimensions.
Additional FastFrame modules, connectors and replacement SEG
graphics can also be supplied separately, allowing the display
system to evolve as your exhibition requirements change.
Frequently Asked Questions
Will this FastFrame stand fit within a 6m × 3m exhibition space?
Yes. The packages have been configured specifically for a
nominal 6m × 3m exhibition area. The back wall measures 5700mm
wide, while layouts with side returns have an overall depth of
approximately 2890mm. The maximum overall width is approximately
5780mm for the three-wall configuration.
How many FastFrame modules are included?
The back-wall package contains six FF-95X240 FastFrame modules.
The back wall plus one side package contains nine modules, and
the three-wall U-shaped package contains twelve modules.
Are the printed graphics included?
Yes. Full-colour dye-sublimation SEG fabric graphics are
included with the stand package. The back wall uses a
5700 × 2400mm graphic and each optional side return uses a
2850 × 2400mm graphic.
Will I see joins between the graphics on each FastFrame module?
No. A single SEG fabric graphic can span multiple connected
FastFrame modules, so the six-frame back wall uses one
continuous 5700mm-wide graphic rather than six separate printed
panels. Each three-frame side return also uses one continuous
graphic.
Can the stand be used with a shell scheme?
Yes. FastFrame can be used within shell-scheme exhibition
spaces. Where a back wall is positioned against an existing
shell-scheme or venue wall, the supplied side half feet can help
the display sit closer to the structure behind it.
Does the FastFrame system require tools to assemble?
The FastFrame modules are designed for quick, tool-free
deployment. The folding frames open out on site and are joined
together using the appropriate straight and corner connectors.
Can I order replacement graphics later?
Yes. Replacement SEG fabric graphics can be supplied separately,
allowing the existing FastFrame hardware to be reused when your
branding, campaign or exhibition artwork changes.
Can I change the stand configuration for another exhibition?
Yes. FastFrame is a modular system, so the individual frames can
be disconnected and arranged in different configurations.
Additional modules and connectors can also be added if you need
to create a larger display in the future.
Can the FastFrame modules be used individually?
Yes. The individual FastFrame modules can be separated from the
complete stand and used independently or combined into smaller
display walls, giving you additional flexibility between
exhibitions.
