Illumigo Modular Lightbox - 2380mm high

Only %1 left

2380mm high - available in 1850 mm, 2850 mm, 3850 mm, 4850 mm and 5850 mm widths

LED portable modular lightbox display
2380mm high
Available in 1850 mm, 2850 mm, 3850 mm, 4850 mm and 5850 mm widths
Easy to assemble push-fit frame
Modern fabric backlit graphics included
Can be connected to other walls to create larger display configurations

As low as £1,102.80 £919.00

Seen it cheaper?

Challenge us to beat that price!

Contact our sales team now

Order and submit artwork within to get it by...

Tuesday 13th Octoberstandard
Thursday 15th Octobereconomy
Thursday 8th Octoberexpress

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Introducing the Illumigo Modular Lightbox - 2380 mm High

A striking, large-format illuminated display system designed to deliver maximum visual impact. Standing at 2.38 metres tall, it provides a commanding presence in retail spaces, exhibition environments and promotional settings.

Built for flexibility and scalability, this modular system supports seamless edge-lit SEG graphics and can be configured across a wide range of widths to suit your display space. The robust aluminium profile, finished in a clean powder-coated white, offers a professional aesthetic while the integrated horizontal LED lighting ensures consistently vivid, evenly-lit graphics with excellent colour definition and contrast.

Tool-free assembly means you can set up quickly and with minimal fuss: numbered frame sections, push-fit joins and discreet power cabling all simplify installation, making the lightbox ideal for both seasoned exhibition teams and newcomers alike. For single-sided display options, a black-back panel is available to prevent light bleed and enhance front-face brightness.

Whether you are creating a wide back-wall, a multi-sided structure (L, T or U-shaped), or a standalone illuminated feature, this system delivers on performance and presence — enabling you to showcase your brand or message in striking, high-visibility fashion.

A picture showing the 5 x available widths of the IllumiGo Modular 2380mm High Lightboxes stacked in front of one another. The image is annotated with width measurements

Choice of 5 Different Width Options

The Illumigo Modular Lightbox system is available in five practical width options — 1850 mm, 2850 mm, 3850 mm, 4850 mm and 5850 mm. Each lightbox is shown here positioned in front of the next to illustrate the full range. These sizes are intentionally designed to be slightly under standard one-metre increments, making them ideal for use within exhibition shell schemes.

Because the internal space of a shell scheme is always a little smaller than its nominal size, a full metre-based panel often will not fit. By offering widths such as 2850 mm for a “3 m” space, the Illumigo system ensures the lightbox can be installed neatly inside the shell scheme without clashing with the aluminium uprights. This gives you a clean, professional, fully illuminated display that fits comfortably within the available footprint.

Build Larger Illuminated Displays with Modular Connections

The Illumigo system is fully modular, meaning multiple lightboxes can be linked together to create much larger illuminated displays. Whether you need a long back-wall, a corner layout, or a multi-sided structure, the frames can be connected securely using a range of dedicated accessories.

We supply a full selection of joining brackets and extension components that allow you to combine different widths and build the exact configuration you need. This makes the system ideal for larger exhibition spaces, shell-scheme walls, and custom environments where a single lightbox isn’t enough.

Simply choose the widths you require, add the appropriate connectors, and the Illumigo system can be expanded to almost any layout — all while maintaining a seamless, evenly lit finish.

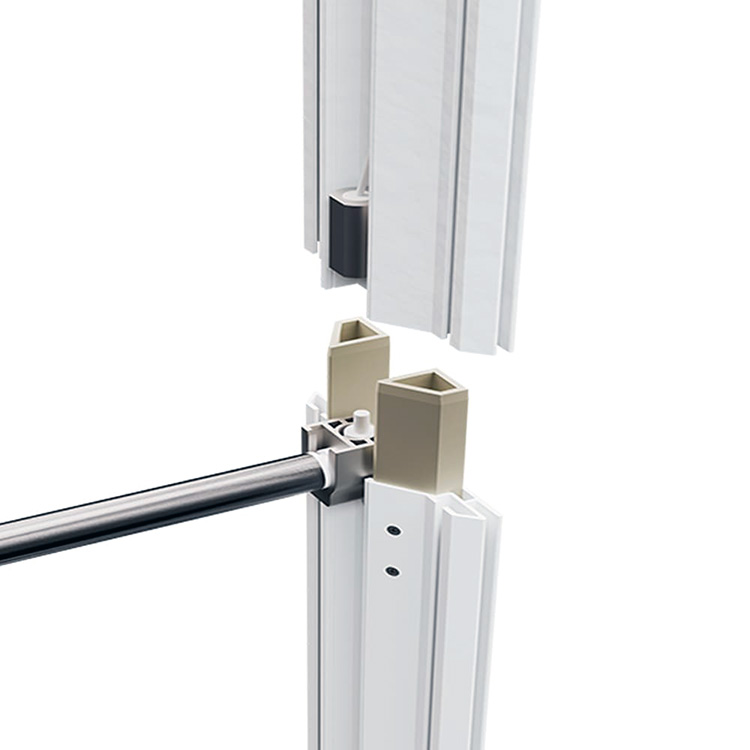

IllumiGo Modular Lightbox 2380mm high - push fit frame

Tool-Free Push-Fit Assembly

The Illumigo frame is designed with a simple push-fit connection system, allowing you to assemble the entire structure without using any tools. Each aluminium section slides neatly into the next, locking securely into place with a firm push. This makes the setup process quick, clean and straightforward — even for first-time users.

Because there are no screws, bolts or loose hardware, the frame can be built in just a few minutes and taken apart just as easily. The push-fit system also ensures that every section aligns perfectly, giving you a stable and professional-looking display every time.

Integrated LED Lighting for Even Illumination

Each Illumigo frame has built-in LED modules housed within the top and bottom horizontal sections. Because the lighting is integrated directly into the structure, there are no loose strips or external components — everything is clean, contained and ready to use.

The LEDs project light evenly across the graphic surface, creating a smooth backlit effect with no hotspots or shadows. This delivers bright, consistent illumination on both faces of the display, making it suitable for single-sided or double-sided layouts.

The system uses efficient, long-lasting LEDs with a daylight white colour temperature, helping printed graphics appear vivid and high-contrast in typical indoor environments. All wiring is pre-installed, and the lights connect using simple plug-in cables, keeping setup fast and completely tool-free.

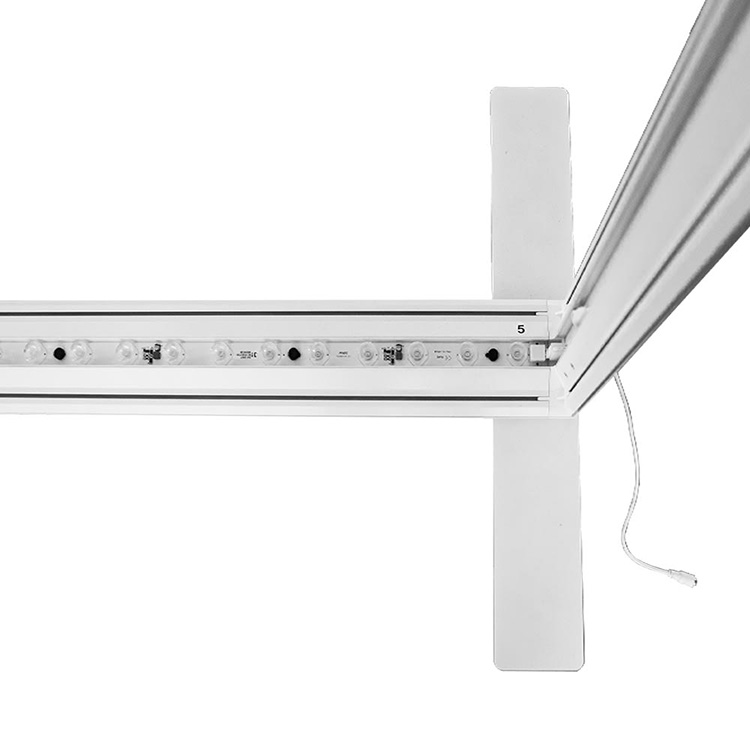

IllumiGo Modular Lightbox 2380mm high - LEDS in frame

Specifications & Technical Data

Available widths: 1850 mm, 2850 mm, 3850 mm, 4850 mm, 5850 mm
Height: 2380 mm
Profile depth: 590 mm
Frame material: Aluminium frame with durable white powder-coated finish
Profile width: 120 mm
Assembly: Tool-free push-fit construction with numbered frame sections and pre-installed LED modules
Transport: Supplied with padded wheeled carry bag for easy transport and storage
Weights (approx.): 1850 mm – 22.7 kg; 2850 mm – 29.1 kg; 3850 mm – 36.8 kg; 4850 mm – 45.1 kg; 5850 mm – 51.6 kg
Input power: 100–240 V / 50–60 Hz / 3.5 A
Output: 24 V / 11 A
Colour temperature: 6500 K (daylight white)
Power consumption (approx.): 1850 mm – 168 W; 2850 mm – 258 W; 3850 mm – 348 W; 4850 mm – 437 W; 5850 mm – 528 W
Graphic type: SEG (Silicone Edge Graphics) – premium backlit fabric, 175 gsm
Single-sided option: Black back-panel available to prevent light bleed and boost brightness
Graphic attachment: SEG strip inserts directly into frame channel for a smooth, taut finish
Modular expansion: Connect multiple frames or add extension panels (850 mm and 1000 mm) for larger layouts
Usage: Indoor use only

Illumigo Modular Lightbox - 2380 mm High - Use-Case Scenarios & Application Examples

The Illumigo Modular Lightbox (2380 mm high) is designed to offer maximum visual impact across a wide range of environments. Its bright, even LED illumination and flexible width options make it suitable for both small display areas and large-scale branded installations.

Exhibition Shell Schemes

The available widths—1850, 2850, 3850, 4850, and 5850 mm—are deliberately sized to fit comfortably inside standard shell-scheme spaces. For example, a 2850 mm lightbox is ideal for a nominal 3-metre stand where the usable internal width is slightly reduced by the aluminium uprights. This allows exhibitors to create clean, seamless illuminated back-walls without clashing with the structure of the stand.

Retail Display Walls

The slim yet sturdy aluminium frame and even backlighting make the system suitable for retail environments where high-quality visual presentation is essential. Use the lightbox to highlight new product ranges, seasonal promotions or brand identity walls.

Events, Conferences & Product Launches

For short-term or travelling events, the Illumigo system provides a premium illuminated backdrop that requires no tools and packs down into wheeled transport bags. It is ideal for brand activations, speaker backdrops, press areas, and reception zones.

Photography & Media Backdrops

Bright, even LED output and wrinkle-free SEG graphics make it suitable for photo walls and media interview areas where consistent lighting and a clean appearance are important.

Large Multi-Panel Installations

Multiple lightboxes can be joined using optional connectors to create L-shaped, T-shaped or U-shaped structures. This is ideal for larger exhibition footprints or immersive branded environments.

Pop-Up Shops & Roadshows

Because the display is easy to assemble and transport, it lends itself well to mobile retail setups and roadshow events where a high-end illuminated feature can be installed quickly and reused across multiple locations.

Reception & Interior Branding

In corporate offices, hotel lobbies, airport lounges and public spaces, the system can be used to create striking illuminated feature walls or changeable brand messaging while maintaining a clean, contemporary aesthetic.

IllumiGo Lightbox Assembly Process Video

The Illumigo system uses a simple, tool-free push-fit aluminium frame, and the assembly method is the same across both the smaller portable units and the larger modular models. The video below demonstrates the core process, including how the frame connects, how the LED modules are wired and how to fit the SEG fabric graphics. Although the lightbox shown is a smaller version, the steps are directly applicable to the full-size modular systems featured on this page.

Frequently Asked Questions (FAQ)

Q: Are the larger Illumigo Modular Lightboxes assembled in the same way as the smaller Illumigo portable versions?
Yes. The modular units use the same tool-free push-fit aluminium frame and SEG graphic system as the smaller portable versions. The assembly process shown in the instructional video applies directly to the larger models.

Q: Will the lightbox fit inside an exhibition shell scheme?
Yes. The available widths (1850, 2850, 3850, 4850 and 5850 mm) are deliberately slightly under standard one-metre increments. This ensures the lightbox fits comfortably inside the internal width of a shell scheme without clashing with the uprights.

Q: Can multiple lightboxes be joined together?
Yes. You can link several Illumigo units to create larger displays, including straight walls, L-shaped, T-shaped or U-shaped layouts. Optional connectors and extension panels are available for more complex configurations.

Q: Are the displays single-sided or double-sided?
The modular system is available with one or two printed graphics to create a single or double-sided display. If ordering the product with one printed graphic, we supply a plain blockout panel for the reverse of the frame. If opting for two printed graphics, you can have different content printed for each side if you wish.

Q: How do the graphics attach to the frame?
The printed fabric uses a silicone edge (SEG), which inserts neatly into a channel around the frame. Once fitted, the graphic sits smooth and tensioned across the illuminated surface.

Q: What type of graphics are used with the Illumigo system?
The system uses premium backlit fabric graphics printed using dye-sublimation. This provides vivid colour reproduction and excellent diffusion when lit from behind.

Q: How bright are the LEDs?
The LEDs operate at a daylight white colour temperature of 6500 K and provide uniform illumination across the graphic. Each width has its own power consumption level, ensuring consistent brightness across all sizes.

Q: Can SEG graphics be folded for transport?
Yes. SEG fabric graphics can be folded without damaging the print. They will stretch back into shape when fitted to the frame.

Q: Do I need any tools to assemble the display?
No. The complete frame is assembled using a push-fit system, and all LED modules are pre-installed. The entire setup can be completed without tools.

Q: Is the Illumigo Modular Lightbox suitable for outdoor use?
No. It is designed exclusively for indoor use.

Q: How is the product transported?
Each lightbox is supplied in a padded wheeled carry bag. All components, including the frame, LED strips and graphics, pack neatly inside for easy movement between events.

Q: What power supply does the lightbox use?
The system plugs into a standard 100–240 V mains socket. Each lightbox includes its own power supply and low-voltage cabling.

Need Help Planning Your Display?

If you have a specific exhibition space or event layout in mind, our team can help you plan the perfect arrangement using the Illumigo Modular Lightbox system. We offer a completely free planning and design service to ensure you get the best possible fit for your stand.

Whether you need a single illuminated back-wall or a full multi-panel configuration, we can calculate the most suitable combination of lightbox widths and advise on exactly which connecting brackets or extension panels are required. This ensures your final display is structurally correct, visually seamless and tailored to your available space.

For a bespoke quotation, simply send us a quick sketch or outline of your space along with the key dimensions. You can email it to us or get in touch directly through our contact page. We’ll convert your rough layout into a clear, professional proposal and provide a full quotation for the recommended configuration.

If you need help, advice or a customised layout, just reach out — we’re here to support you throughout the planning process.
