Blockout Fabric Printing

Black backed polyester display fabric for 100% opaque printed fabric display graphics
  • PU black backed fabric prevents show through
  • 280gsm material weight
  • Fire rated material suitable for use in all public spaces
  • Material has around 2% stretch
  • Suitable for hanging banners, application to tensioned frames
  • Can be finished with velcro, silicone edging, pockets, eyelets etc
  • Our sewing technicians can finish prints to almost any pattern/spec


£0.00 £0.00

Seen it cheaper?

Challenge us to beat that price!

Contact our sales team now
Order and submit artwork within to get it by...
  • Tuesday 30th Julystandard
  • Thursday 1st Augusteconomy
  • Thursday 25th Julyexpress

Blockout fabric printing is available in widths up to 3.1 Metres by almost any continuous length. Blockout fabric prints are suitable for a wide range of display applications including event backdrops, display graphics and hanging banners. Our polyester fabric features a black-coloured polyurethane backing to prevent show-through whilst retaining a degree of elasticity so it can be stretched and tensioned.

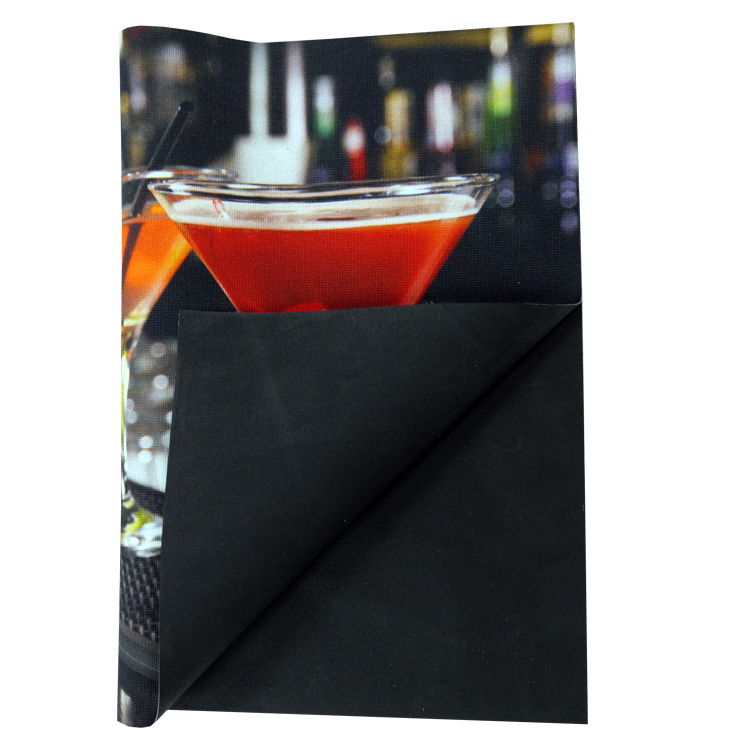

Black PU Backing For Opacity

Blockout fabric is made from a knitted display polyester that is bonded to a black polyurethane liner to prevent light transmission through the material.

Being completely opaque, images printed onto blockout fabric are strong and vibrant with maximum colour density.

Blockout fabric is a popular printable fabric and can be used for a wide variety of applications where a solid no-show-through fabric is preferred.

Applications for this material include the production of exhibition graphics, retail display banners, prints for SEG frames (silicone-edged graphics) and more.

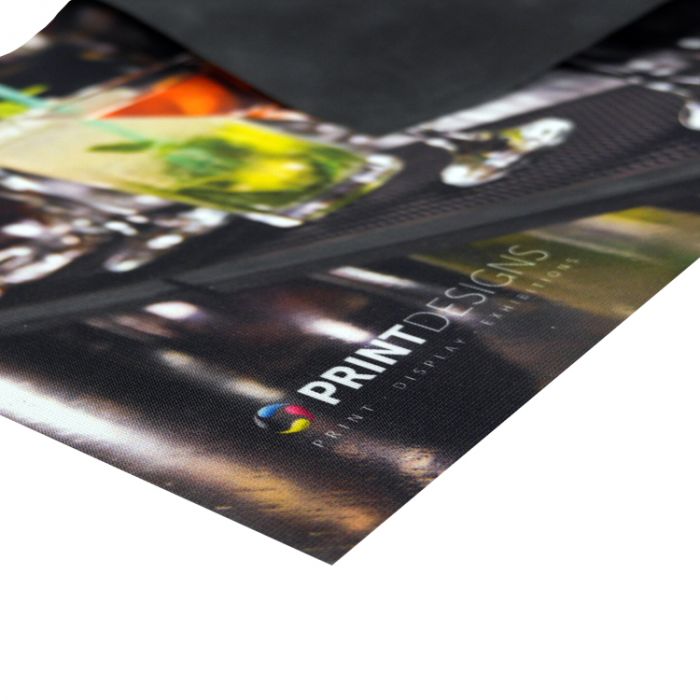

Blockout Fabric Prints

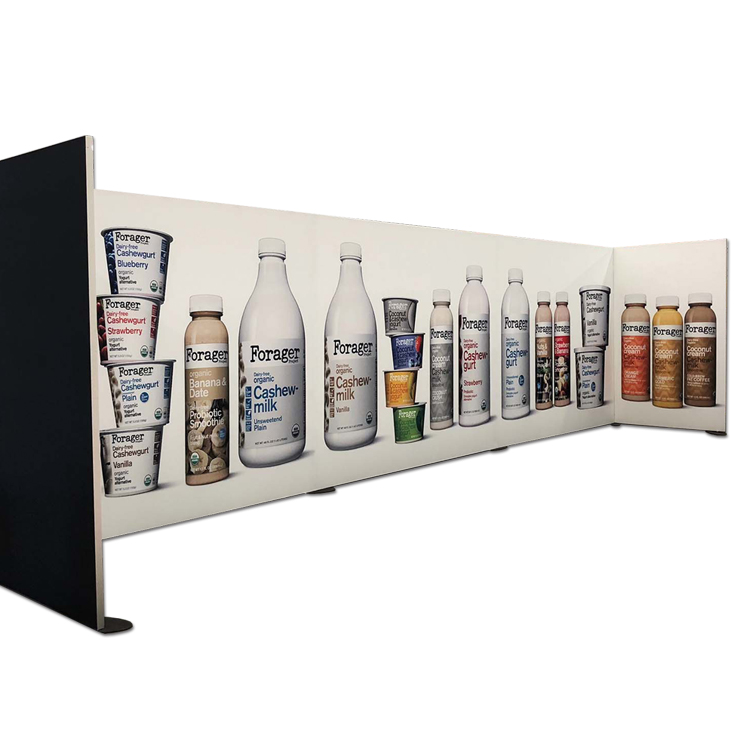

Trade Blockout Fabric Printing

Tensionable Fabric Ideal For SEG Frames

Our Blockout fabric prints have around 2% elastic stretch which means that they can be tensioned onto a supporting frame.

Many frame systems feature a perimeter channel that is designed to accept a silicone profile. The blockout fabric print can be sewn with the relevant edging so it can push-fit to the frame and be held in position under tension for a smooth, flat finish.

There are several different types of silicone edging available so if you require your print to be sewn with edging, we recommend that you send an existing print to us so we can identify the type of edging you require and use the same type on the new print. If you do not have an old print to send us, you can measure the depth and width of the channel in your frame and provide these measurements to us.

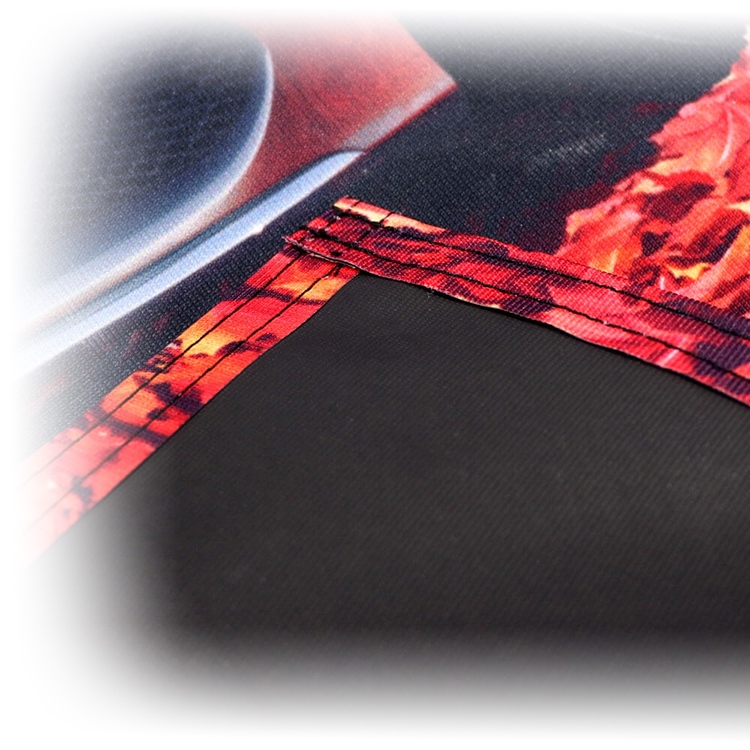

Sewing and Finishing of Blockout Fabric

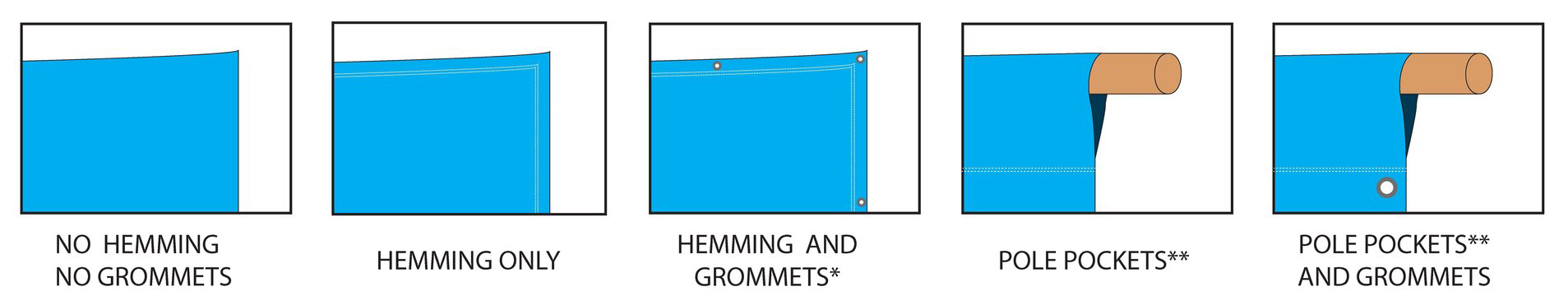

Our in-house sewing technicians can finish your prints to almost any specifications on request. We have the following options available as standard:

  • Material cut to size (no hem)
  • Material cut to size and sewn with a hem (approx 10mm hem)
  • Material cut to size and sewn with pockets (please provide instructions for pocket placement/size after ordering)
  • Material is sewn with silicone edging to the perimeter (multiple profiles available depending on requirements)
  • Material is sewn with velcro to the perimeter(hook or loop type available)


If you have other specific finishing requirements for your prints, please just contact a member of our team so we can discuss your requirements in greater detail and advise if there is any additional cost for the type of print finishing that you need.

Blockout Fabric Printing Sewing

Examples Of Print Finishing Options For Blockout Fabric Printing

Blockout Fabric Printing Finishing
Blockout Fabric Dye Sublimation Printing

Industrial Dye Sublimation Printing Process

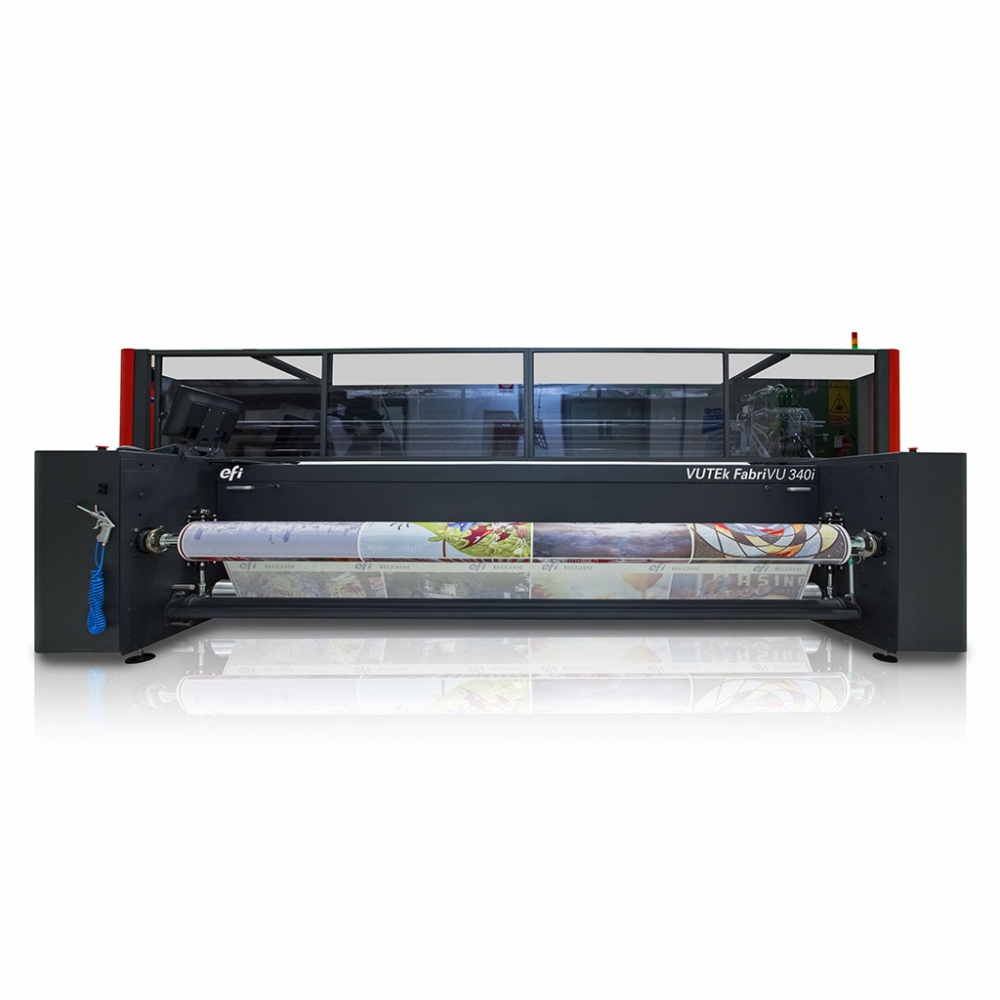

Blockout fabric prints from Printdesigns are produced from our industrial 3.4M wide EFI FabriVu printer. With an ultra-high print resolution of up to 2400 dpi, you can be assured of the finest printing quality from a company with over 20 Years of experience in the production of large-format graphics.

Unlike some other printing processes, our dye sublimation printing technology allows prints to be folded for convenient transportation and storage without causing permanent damage or bruising to the printed image.

Blockout fabric is fire-rated and suitable for use in all public spaces.


Helpful Support & Advice

Our experienced team are always on hand to provide helpful assistance and support if you need it. We can provide advice as to the best type of fabric for your needs as well as support with artwork setup. Please feel free to contact our team by phone, email or online chat to discuss your blockout fabric printing requirements.

More Information
Approximate Weight280gsm
