4m x 3m Backlit Exhibition Stand - Illumigo Lightbox

A complete 4x3 backlit exhibition display stand - available in one, two or three wall formats
  • Fits a standard 4x3 exhibition shell scheme
  • Bright, seamless LED backlit display panels
  • Tool-free Illumigo modular lightbox system
  • Quick and easy assembly with lightweight components
  • Professional illuminated finish ideal for exhibitions and events
  • Modular design suitable for one, two, or three-wall layouts



£2,034.00 £1,695.00

Seen it cheaper?

Challenge us to beat that price!

Contact our sales team now
Order and submit artwork within to get it by...
  • Friday 27th Novemberstandard
  • Tuesday 1st Decembereconomy

4m × 3m Backlit Exhibition Stand – Illumigo Modular Lightbox

Create an illuminated exhibition display for a 4m × 3m stand space with the Illumigo Modular lightbox system. Choose a single back wall, an L-shaped two-wall display or a U-shaped three-wall layout, complete with full-colour fabric graphics.

Each wall combines a white aluminium frame, integrated LED lighting and a seamless silicone-edge fabric graphic. The push-fit frame assembles without tools and packs into padded wheeled transport bags for storage and use at your next event.

The frames are deliberately shorter than the nominal stand dimensions: the back wall is 3,850mm wide and each side wall is 2,850mm wide. All walls are 2,380mm high, with a 120mm-deep frame profile.

Check your available space: shell scheme dimensions vary between organisers and systems. Please confirm the clear internal dimensions, any obstructions and the organiser’s height restrictions before ordering. Contact us if you would like help checking the layout.

Illumigo Modular aluminium frame sections and push-fit connectors

About the Illumigo Lightbox System

Illumigo Modular is designed for reusable illuminated exhibition displays. Its aluminium frame sections connect to form a large lightbox wall, with a continuous fabric graphic across the front.

Tool-Free Push-Fit Assembly

Numbered frame sections and internal guide pins help you assemble the display in the correct sequence. The sections push together, and the support feet secure using thumbscrews, so no specialist tools are needed.

The supplied half feet allow the walls to sit close to the shell scheme. Corner layouts also include the appropriate blind feet and top corner connectors.

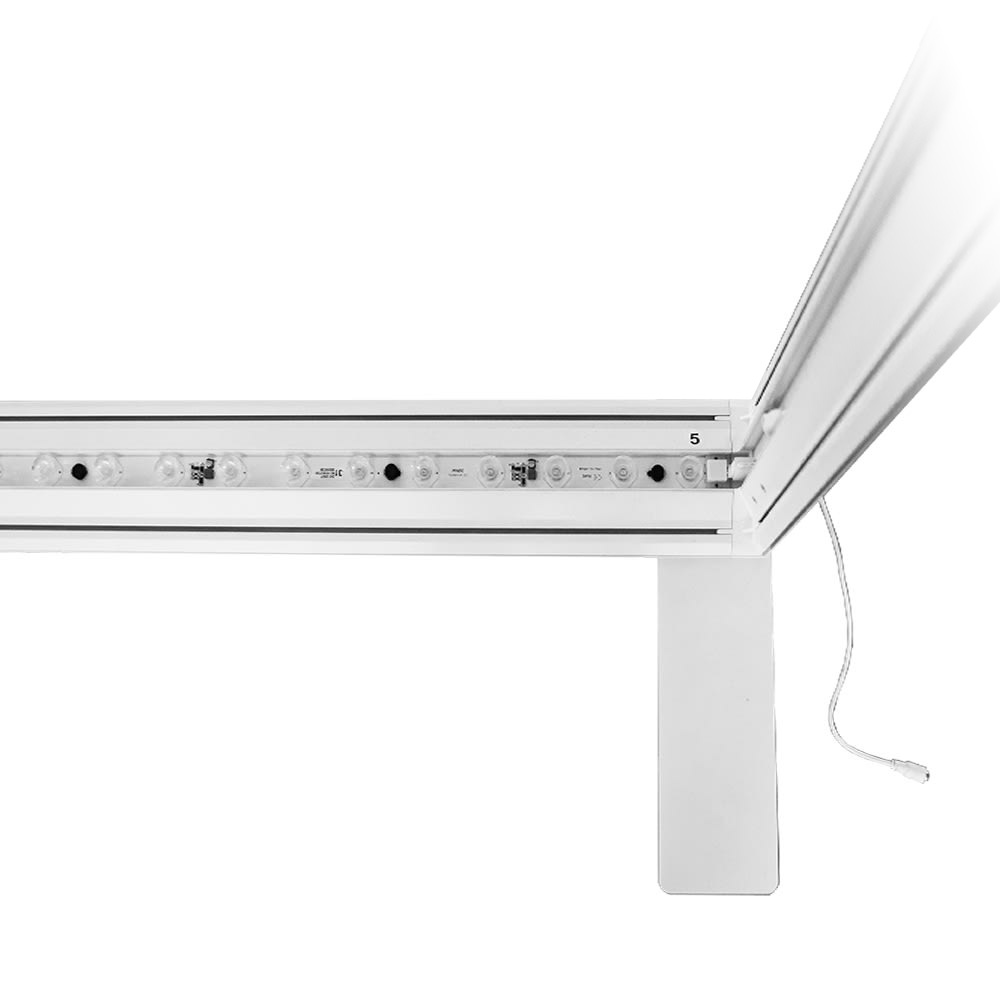

Integrated LED Lighting

The LEDs are pre-installed inside the frame profiles. This is an edge-lit lightbox: light travels across the rear of the fabric, illuminating the printed graphic from behind.

Once the frame is assembled, connect the plug-and-play wiring and the supplied low-voltage power supplies, then connect to a suitable mains supply.

Please arrange the necessary electrical supply with your exhibition organiser. The stand does not include the venue’s electrical connection or power service.

Pre-installed LED lighting inside the Illumigo Modular lightbox frame

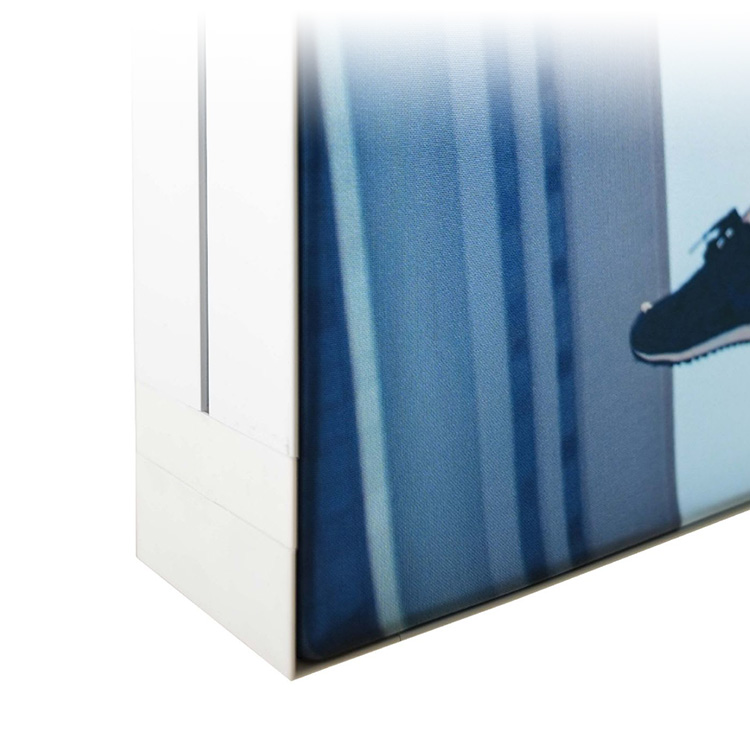

Printed backlit fabric graphic fitted into an Illumigo silicone-edge channel

Printed SEG Backlit Fabric Graphics

We produce your graphics in-house using dye-sublimation printing on specialist backlit fabric. Each wall has its own continuous printed front panel, avoiding vertical panel joins across that wall.

A silicone strip sewn around the graphic pushes into the frame channel, holding the fabric under tension for a smooth finish.

As standard, each wall includes one printed front graphic and one unprinted rear blockout panel. The rear panel helps control light spill when the stand is used against shell scheme walls.

If you need printed graphics on both faces for freestanding use, please contact us to discuss the configuration.

Choose Your 4m × 3m Stand Layout

Select the number of walls you need using the options above. The starting price is for the back wall only; choosing a two- or three-wall package updates the price.

Back Wall Only

One illuminated back wall provides a large graphic area while leaving the sides of your stand open.

Frame: 3,850mm wide × 2,380mm high.

Hardware: one lightbox frame and five half support feet.

Includes one printed front graphic and one rear blockout panel.

Plan of the single-wall Illumigo display: 3850mm wide, 120mm frame depth and five half feet

Back Wall + One Side Wall (L-Shape)

Connect a back wall and one side wall to create an illuminated corner display.

Frames: one 3,850mm back wall and one 2,850mm side wall, both 2,380mm high.

Overall plan dimensions: approximately 3,850mm × 2,970mm, as shown.

Hardware: two frames, eight half feet, one blind foot and one 90° top corner connector.

Includes two printed front graphics and two rear blockout panels.

L-shaped two-wall Illumigo plan: 3850mm by 2970mm, eight half feet and one corner connection

Back Wall + Two Side Walls (U-Shape)

Illuminate three sides of your stand with a back wall and two connected side walls.

Frames: one 3,850mm back wall and two 2,850mm side walls, all 2,380mm high.

Overall plan dimensions: approximately 3,850mm × 2,970mm, as shown.

Hardware: three frames, eleven half feet, two blind feet and two 90° top corner connectors.

Includes three printed front graphics and three rear blockout panels.

U-shaped three-wall Illumigo plan: 3850mm by 2970mm, eleven half feet and two corner connections

What’s Included?

  • Illumigo Modular lightbox frames for your chosen layout.
  • One full-colour printed SEG front graphic per wall.
  • One unprinted rear blockout panel per wall.
  • Pre-installed LED lighting, power supplies and cables.
  • Half support feet and, for corner layouts, blind feet and top corner connectors.
  • Padded wheeled transport bags for the frame kits.

Flooring, furniture and other exhibition accessories shown in example photographs are not included.

A Reusable Exhibition Display

The frames dismantle for transport and can be used at future exhibitions, conferences and promotional events.

  • Large illuminated graphics for a clear brand presence.
  • A choice of open, corner or three-wall layouts.
  • Tool-free frame assembly and push-fit fabric graphics.
  • Replaceable graphics when your campaign or branding changes.

We also supply replacement backlit prints for Illumigo displays. Please confirm your frame size when ordering replacements.

Artwork Setup and Transport

Artwork templates are available in the Downloads tab on this page, or through the links below. Use the 3,850mm-wide template for the back wall and the 2,850mm-wide template for each side wall.

Supply one artwork file for each printed wall. For the U-shaped package, prepare two side wall files using the same 2,850mm template if the designs differ. Follow the template’s artwork dimensions rather than creating files from the frame dimensions alone.

Create artwork in CMYK and supply print-ready PDFs following the template’s bleed and safe-area instructions. Keep important text and logos clear of the corner joins, where part of a graphic may be obscured by the adjoining frame.

Our artwork team will check your files and send proofs for approval before production. If you need design help, we can quote for this separately.

The frame kits pack into padded wheeled bags. Larger frames may use more than one bag, so please allow space for the complete packed display when planning transport.

Contact our team for artwork advice or help choosing your layout.

Padded wheeled carry bag for transporting the Illumigo Modular frame
More Information
Approximate Weight1

View our product video

Any questions? Please just contact a member of our friendly team who will be happy to provide obligation-free advice and support
