The Perfect FastFrame Solution For 3m × 2m Stand Spaces
The FastFrame 3m × 2m Exhibition Stand is a complete modular display package
designed specifically for standard 3m × 2m exhibition spaces. Built from
lightweight folding aluminium FastFrame display modules, the system provides
a professional, reusable and easy-to-assemble alternative to traditional
exhibition stands.
Choose from a straight back wall, an L-shaped corner display or a three-wall
U-shaped stand layout. Each option is supplied with the correct frames, feet
and connectors required for the selected configuration, making it easy to
order a complete exhibition display without having to work out every
individual component.
Choose Your 3m × 2m Stand Layout
This product is available in three layout options. Simply select the
configuration that best matches your exhibition stand space.

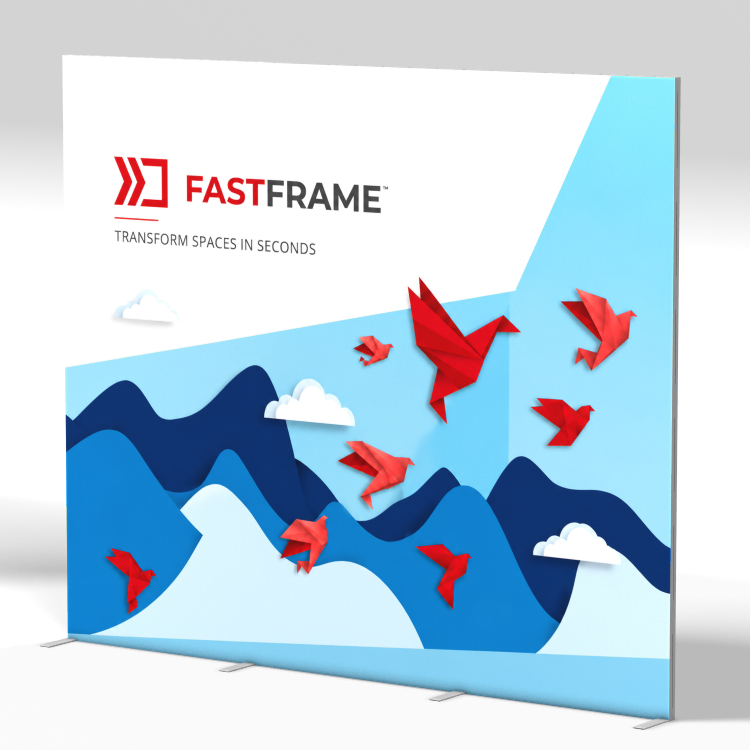

Back Wall Only
A straight 2850mm wide display wall, ideal for positioning at the rear
of a 3m × 2m exhibition space.

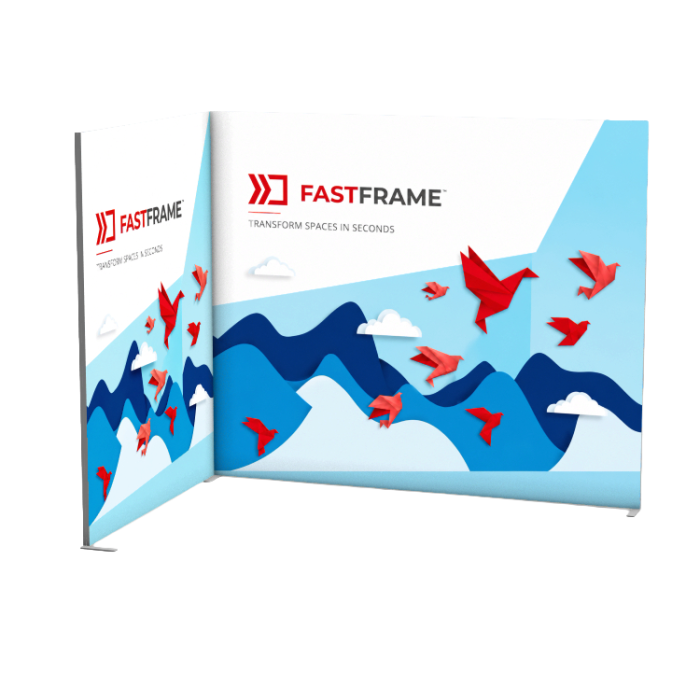

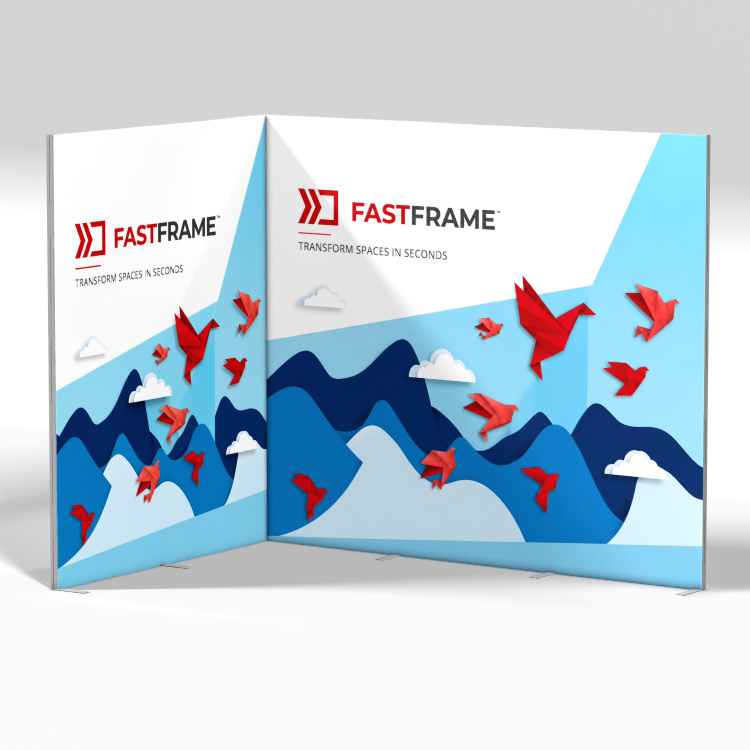

Back Wall + One Side Return
An L-shaped exhibition stand with a 2850mm rear wall and a 1900mm side
return, ideal for corner stand spaces.

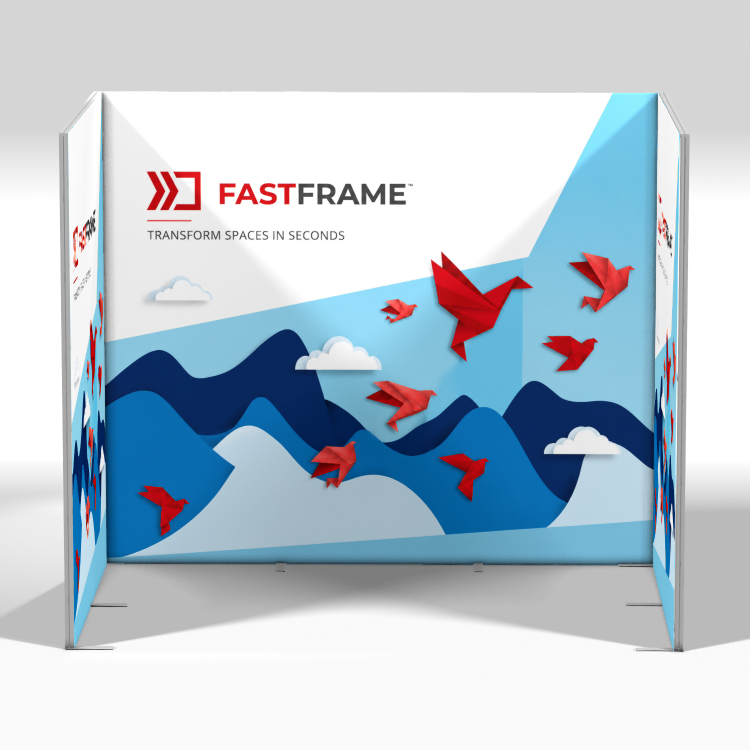

Back Wall + Two Side Returns
A three-wall U-shaped display layout providing maximum branding coverage
within a 3m × 2m stand space.
Package Options And Dimensions
Configuration
Frames Included
Graphic Dimensions
Overall Footprint
Typical Use
Back Wall Only
3 FastFrame modules
2850mm × 2400mm
2850mm wide
Rear display wall for 3m wide spaces
Back Wall + One Side Return
5 FastFrame modules
Back wall: 2850mm × 2400mm
Side return: 1900mm × 2400mm
2890mm wide × 1940mm deep
L-shaped corner stand
Back Wall + Two Side Returns
7 FastFrame modules
Back wall: 2850mm × 2400mm
Side returns: 2 × 1900mm × 2400mm
2930mm wide × 1940mm deep
Three-wall U-shaped stand
Technical Layout Drawings
The diagrams below show the footprint, dimensions and package contents for
each available 3m × 2m FastFrame stand configuration.
Back Wall Only
Back Wall + One Side Return
Back Wall + Two Side Returns
See How FastFrame Works
Watch our FastFrame overview video to see how the system expands, how the
frames connect together and how complete exhibition stands can be created
from a simple range of modular display components.
The video demonstrates the folding aluminium framework, seamless SEG
graphics and connector system used to create professional exhibition
displays quickly and without complicated construction.
Why Choose A FastFrame 3m × 2m Exhibition Stand?
A 3m × 2m exhibition stand is one of the most commonly used stand sizes at
trade shows, exhibitions and business events. It provides enough space to
create a strong branded display while remaining compact, portable and
cost-effective.
The FastFrame 3m × 2m Exhibition Stand has been developed specifically for
this type of exhibition space. Rather than asking customers to configure
individual frames, connectors and accessories, the package provides the
components required to create a professional display that fits the stand
area you have booked.
Unlike many fixed exhibition stands, FastFrame is fully modular. The same
frames used to create your 3m × 2m display can be separated, reused and
reconfigured for future events. Individual frames can be used as standalone
displays, replacement graphics can be ordered, or the system can be expanded
later by adding further frames and connectors.
Example:
A 3m wide FastFrame back wall uses three 950mm modules. If your exhibition
requirements change, additional modules and graphics can be added later to
create a wider display.
Designed To Fit Standard Shell Scheme Spaces
Nominal exhibition stand sizes are not always the same as the usable
internal dimensions of a shell scheme. A typical shell scheme panel is
slightly less than a full metre wide, while upright posts can also reduce
the available internal space.
FastFrame exhibition stand packages are designed around 950mm wide display
modules. This makes them particularly suitable for standard shell scheme
environments because the finished display walls are slightly smaller than
the nominal stand space, providing useful installation tolerance.
For this 3m × 2m stand package, the rear display wall is 2850mm wide and the
side return is 1900mm deep. This allows the display to fit comfortably
within a typical 3m × 2m exhibition space while maximising the available
branded display area.
The FastFrame Building Block
Every FastFrame exhibition stand is built using the same core component:
the FastFrame 950mm × 2400mm folding display frame.
Each frame is a self-contained lightweight aluminium structure with a
scissor-style expanding design. The frame opens quickly, locks into
shape and creates a rigid display structure ready to accept SEG fabric
graphics.
Multiple FastFrame modules can be positioned side by side and connected
together to create larger walls. The graphic for each wall is printed
as one continuous fabric panel, helping create a seamless appearance
across the joined frames.
Compact Folding Design
FastFrame is designed to be simple to transport, store and assemble.
Unlike traditional modular systems that require numerous loose frame
sections to be connected with tools, each FastFrame module is supplied
as a complete folding unit.
The hinged scissor mechanism allows the frame to collapse into a compact
format for transport and storage. On site, the frame expands in seconds,
helping reduce build time and making the system particularly suitable
for regular exhibitors.
Expanded Frame & Carry Bag
Folded For Transport & Storage
Seamless SEG Fabric Graphics
FastFrame uses high-quality SEG fabric graphics. SEG stands for Silicone
Edge Graphic: a flexible silicone edging is sewn around the perimeter of the
printed fabric and pushed into the channel around the FastFrame structure.
This tensions the material to create a smooth, clean graphic surface.
For larger FastFrame walls, the graphic is produced as one continuous piece
of fabric across multiple frames. A three-frame 2850mm back wall, for
example, uses one continuous 2850mm wide graphic rather than three separate
printed panels.
Graphics are produced using dye-sublimation printing onto polyester-based
display fabric. They are washable, recyclable and replaceable, making the
system suitable for exhibitions, events and repeated promotional use.
Replacement graphics can be ordered separately in the future, allowing you
to update your branding or campaign without replacing the FastFrame
hardware.
Support Feet For Different Exhibition Environments
FastFrame can be supported using different foot styles depending on the
position of the display and the space available around it.
Standard full feet provide support to both the front and rear of the frame
and are ideal when the display is being used in an open or freestanding
position.
Each complete FastFrame exhibition stand package also includes a pair of
side half feet. These sit in line with the display and are useful where the
stand needs to be positioned close to a shell scheme wall or other existing
structure while keeping the footprint compact.
Standard Support Foot
Side Half Support Foot
Connecting Multiple Frames Together
Larger display walls are created by positioning FastFrame modules side by
side. At the top of each straight joint, an FF-2WC 2-Way Connector keeps
the adjoining frames correctly aligned.
At floor level, support feet such as the FF-SMF Small Middle Foot are used
at the joins between frames where required. The foot supports and stabilises
the adjoining modules without projecting prominently in front of the
finished display.
The required connectors and support feet are already included within each
package configuration, so there is no need to calculate these components
separately.
Small Middle Foot – FF-SMF
The Small Middle Foot provides compact support at the join between
adjoining FastFrame modules. Its reduced footprint helps maintain
stability without creating large visible feet along the front of the
finished display wall.
Corner Connections For L-Shaped And U-Shaped Stands
Where two FastFrame display walls meet at a 90-degree angle, they are joined
using the FF-90C 90° Connector Kit. This allows the same modular frames to
be used to create both L-shaped corner stands and three-wall U-shaped
exhibition layouts.
The Back Wall + One Side Return package includes one FF-90C connection for
the single corner. The Back Wall + Two Side Returns package includes two
FF-90C connections to create the two corners required for the U-shaped
layout.
What Makes FastFrame Different?
Designed for standard 3m × 2m exhibition stand spaces
Back wall, L-shaped and U-shaped configurations available
Lightweight folding aluminium display frames
Seamless SEG fabric graphics
Reusable and reconfigurable hardware
Replaceable and washable fabric graphics
Suitable for shell scheme and space-only stands
Expandable with additional FastFrame modules and graphics
More Than Just A 3m × 2m Exhibition Stand
Although this package is designed to create a complete 3m × 2m exhibition
stand, the FastFrame system remains fully modular.
After your event, the frames can be separated and reused as individual
display units. Replacement graphics can be ordered, additional frames can
be added, or the same hardware can be reconfigured into different stand
layouts for future events.
This makes FastFrame a flexible exhibition display system rather than a
single-use stand, allowing your investment to adapt as your exhibition
requirements change.
Frequently Asked Questions
Is This Stand Suitable For A 3m × 2m Shell Scheme?
Yes. The stand is built around 950mm wide FastFrame modules, giving a
finished rear wall width of 2850mm. This provides useful installation
tolerance within a nominal 3m wide exhibition space.
How Long Does It Take To Assemble?
Individual FastFrame modules expand in seconds. A complete stand can
typically be assembled in around 30 minutes or less, depending on the
selected layout, the number of frames involved and the number of people
installing it.
Are The Printed Graphics Included?
Yes. The required printed SEG fabric graphics are included with the
selected stand configuration.
Can I Replace The Graphics?
Yes. Replacement FastFrame graphics can be ordered separately, allowing
you to update your branding or campaign for future events without
replacing the frame hardware.
Can I Expand Or Reconfigure The Stand Later?
Yes. FastFrame is modular, so additional frames, connectors and graphics
can be added to create larger displays or different stand layouts in the
future.
Can The Frames Be Used Individually?
Yes. Each FastFrame module can also be used as an individual display frame
with a suitable graphic and support feet.
