A Flexible Modular Display System For 3m × 3m Exhibition Spaces
Make full use of a standard 3m × 3m exhibition space with a modular FastFrame
display package designed around lightweight 950mm × 2400mm folding aluminium
frames. The system combines generous branded wall space with quick, tool-free
assembly and compact storage between events.
Choose a simple 2850mm back wall, an L-shaped stand with one 2850mm side return,
or a three-wall U-shaped layout. Each configuration includes the frames,
connectors and support feet required for that particular arrangement, together
with full-colour SEG fabric graphics for the selected walls.
Choose Your 3m × 3m Stand Layout
Three pre-configured layouts are available, allowing you to match the display
to the position of your stand and the amount of wall coverage you need.

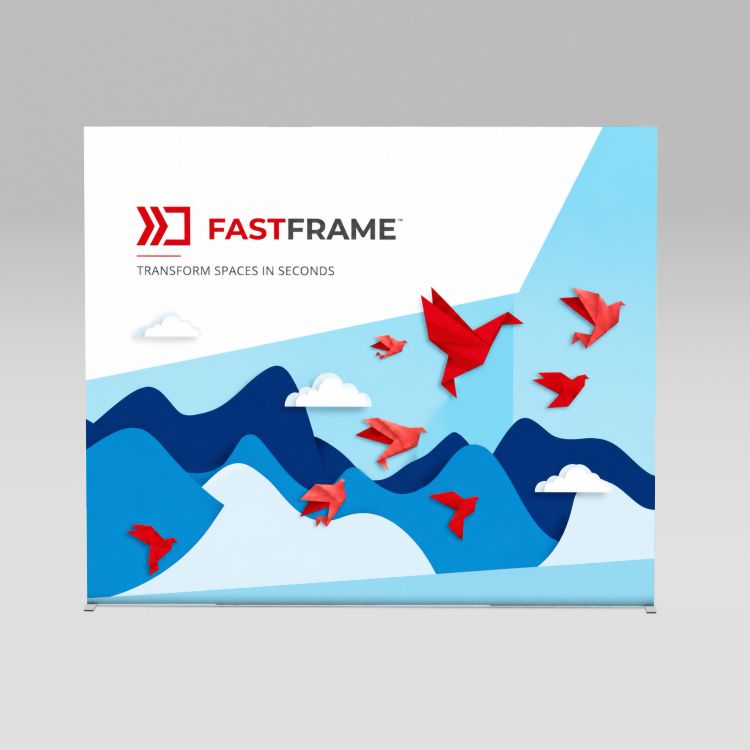

Back Wall Only
A straight 2850mm wide display wall, ideal for creating a branded backdrop
within a 3m × 3m exhibition space. When positioned against an existing
shell-scheme or venue wall, the supplied side half feet can be used so the
FastFrame sits as close as possible to the wall behind. If the back wall is
being used as a freestanding display in an open space, the standard full
support feet should be used instead to provide stability to both the front
and rear. Both support-foot options are supplied with the package.

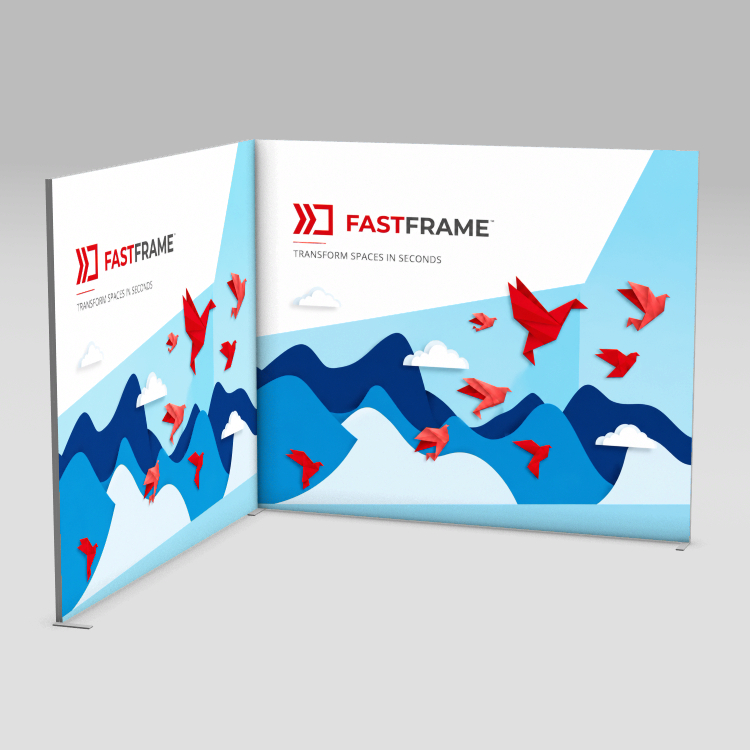

Back Wall + One Side Return
An L-shaped configuration with a 2850mm back wall and matching 2850mm side
return, providing strong branding across two faces while retaining an open
approach from two sides.

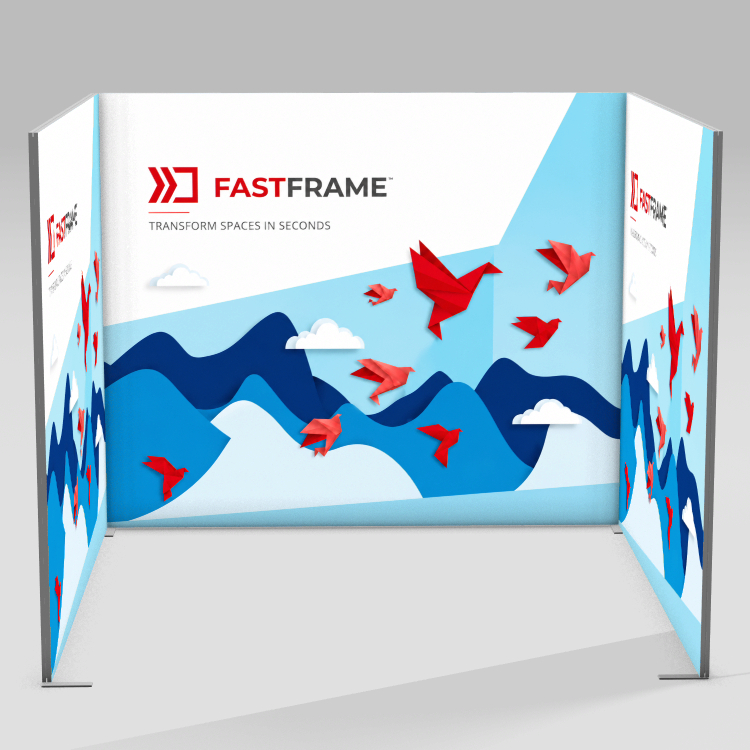

Back Wall + Two Side Returns
A three-wall U-shaped layout that creates an enclosed branded backdrop on
three sides while keeping the front of the exhibition stand open and
accessible.
Package Options And Dimensions
Configuration
Frames Included
Graphic Dimensions
Overall Footprint
Typical Use
Back Wall Only
3 FastFrame modules
2850mm × 2400mm
2850mm wide × 220mm deep
Open 3m × 3m stand with a full rear graphic wall
Back Wall + One Side Return
6 FastFrame modules
Back wall: 2850mm × 2400mm
Side return: 2850mm × 2400mm
2890mm wide × 2890mm deep
L-shaped corner or open-sided exhibition stand
Back Wall + Two Side Returns
9 FastFrame modules
Back wall: 2850mm × 2400mm
Side returns: 2 × 2850mm × 2400mm
2930mm wide × 2890mm deep
U-shaped stand with three branded walls
Technical Layout Drawings
The floor plans below show the finished footprint, graphic sizes and hardware
included with each 3m × 3m FastFrame package.
Back Wall Only
Back Wall + One Side Return
Back Wall + Two Side Returns
See How FastFrame Works
FastFrame uses expanding aluminium display frames that open quickly and connect
together to create larger exhibition walls. The system avoids the large number
of separate poles and complicated fixings associated with many traditional
modular stands.
Watch the overview video to see the folding framework, SEG fabric graphics and
modular connector system in use.
Why Choose A FastFrame 3m × 3m Exhibition Stand?
The 3m × 3m footprint is one of the most useful exhibition stand sizes because
it offers enough room for meaningful visitor interaction while still fitting
comfortably into many shell scheme and space-only event layouts. FastFrame
turns that footprint into a substantial branded environment without requiring
a custom-built stand.
With the back-wall package you retain an almost completely open floor area.
Adding one side return gives you two large graphic surfaces, while the U-shaped
option provides three 2850mm wide printed walls and a more enclosed stand
environment for meetings, demonstrations or product presentation.
Every layout is built from the same reusable 950mm × 2400mm FastFrame modules.
The hardware can therefore be separated after the event, rearranged for a
different stand shape, or expanded with additional frames and replacement
graphics in the future.
Built for a genuine 3m × 3m footprint:
even the full U-shaped configuration measures approximately 2930mm wide ×
2890mm deep, providing useful installation clearance within a nominal
3000mm × 3000mm stand space.
Practical Dimensions For Shell Scheme And Space-Only Stands
Exhibition spaces described as 3m × 3m are nominal sizes. In a shell scheme,
posts, wall panels and neighbouring stand structures can reduce the usable
internal space slightly, so a display system that finishes just inside the
quoted footprint is easier to install.
The straight FastFrame back wall is 2850mm wide. The L-shaped configuration
occupies approximately 2890mm × 2890mm, while the three-wall U-shaped package
measures approximately 2930mm wide × 2890mm deep.
These dimensions provide useful tolerance around the display while still
maximising the available branding area. The 2400mm display height also creates
a strong visual presence without requiring a bespoke exhibition build.
The FastFrame Building Block
The 3m × 3m packages are constructed from FastFrame 950mm × 2400mm folding
display modules. Three frames positioned side by side create each 2850mm
wide exhibition wall.
Each aluminium frame is a self-contained expanding structure. It opens from
its compact folded form, locks into position and provides the support needed
for a tensioned SEG fabric graphic.
Because the same frame size is repeated throughout the system, the modules
can be reused independently or combined in different quantities to create
other FastFrame layouts for future exhibitions.
Compact Folding Design
Although a complete 3m × 3m display can contain up to nine individual frames,
each FastFrame module collapses into a compact folding unit for transport and
storage. This makes a substantial exhibition backdrop much easier to handle
between events than a conventional rigid modular structure.
On site, the scissor-style aluminium framework expands in seconds and requires
no tools for the basic frame assembly. Once the modules are positioned,
connectors and support feet secure the chosen layout ready for the graphics.
Expanded Frame & Carry Bag
Folded For Transport & Storage
Continuous SEG Fabric Graphics
FastFrame uses Silicone Edge Graphics (SEG). A flexible silicone strip is sewn
around the edge of the printed fabric and inserted into the channel around the
frame, tensioning the graphic to produce a smooth, frameless finish.
Importantly, a complete 2850mm wall is supplied with one continuous
2850mm × 2400mm fabric graphic. The printed artwork therefore runs across all
three FastFrame modules without separate visible graphic panels interrupting
the design.
The graphics are produced using full-colour dye-sublimation printing onto
polyester display fabric. They can be replaced separately from the hardware,
making it straightforward to refresh a campaign or rebrand the stand for a
future event.
Support Feet For Different Exhibition Environments
The support arrangement can be adapted to suit where the FastFrame stand is
positioned. Standard full support feet project to the front and rear of the
frame and should be used when a FastFrame wall is freestanding in an open space,
where support is needed in both directions.
Side half feet are useful when the stand is positioned against an existing
shell-scheme or venue wall. Because they project forwards rather than requiring
the same clearance behind the frame, they allow the FastFrame wall to sit much
closer to the structure behind it and maximise the usable stand depth.
Both full support feet and side half feet are supplied with the stand package,
so the installation can be adapted to suit the venue and whether the display is
wall-backed or genuinely freestanding.
Standard Support Foot
Side Half Support Foot
How The 3m Walls Connect Together
Each 2850mm wall is made from three adjoining FastFrame modules. FF-2WC
two-way connectors align the frames at the top of each straight joint, while
FF-SMF small middle feet provide compact support at floor level between
neighbouring modules.
The back-wall package uses two FF-2WC connectors and two FF-SMF feet. The
L-shaped package uses four of each across its two walls, while the three-wall
U-shaped package uses six of each.
These components are included as part of the selected package, so the correct
quantities arrive with the frames rather than having to be specified
separately.
Small Middle Foot – FF-SMF
The FF-SMF sits at the joint between adjoining modules and supports the
frames without creating a large foot projecting into the usable stand
space.
Creating L-Shaped And U-Shaped Corners
The FF-90C 90° Connector Kit joins complete FastFrame walls at right angles.
One corner kit is included with the Back Wall + One Side Return package,
creating the L-shaped layout.
The U-shaped configuration requires two right-angle connections and
therefore includes two FF-90C kits. This creates three distinct branded
walls while keeping the front of the 3m × 3m stand open.
What Makes This 3m × 3m FastFrame Stand Different?
Designed around a standard 3m × 3m exhibition footprint
Choice of one, two or three branded display walls
2850mm wide continuous graphics on each complete wall
Lightweight folding aluminium FastFrame modules
Tool-free frame expansion and straightforward assembly
Reusable hardware with replaceable SEG fabric graphics
Suitable for shell scheme and space-only exhibitions
Modular system can be expanded or reconfigured later
A 3m × 3m Stand That Can Change With Future Events
The package is configured for a 3m × 3m floor space, but the individual
FastFrame modules are not permanently tied to this layout. After an event,
each wall can be separated back into its individual 950mm wide frames.
Those modules can then be used independently, arranged into different wall
widths, combined with additional FastFrame frames or fitted with replacement
graphics for another campaign.
This gives the system a useful life beyond one particular exhibition stand
size and makes it particularly attractive for organisations attending several
events with different floor-space allocations.
Frequently Asked Questions
Will The Stand Fit Inside A 3m × 3m Shell Scheme?
Yes. The straight back wall is 2850mm wide. The L-shaped configuration
measures approximately 2890mm × 2890mm, and the full U-shaped layout is
approximately 2930mm wide × 2890mm deep. This leaves useful tolerance
within a nominal 3000mm × 3000mm exhibition space.
How Many FastFrame Modules Are Included?
The back-wall package includes three 950mm × 2400mm frames. The
Back Wall + One Side Return package includes six frames, while the
Back Wall + Two Side Returns package includes nine.
How Long Does The Stand Take To Assemble?
Individual FastFrame modules expand in seconds. The overall installation
time depends on whether you choose the three-frame back wall, six-frame
L-shaped stand or nine-frame U-shaped configuration, as well as the
number of people assembling it.
Are The Printed Graphics Included?
Yes. Full-colour SEG fabric graphics for every wall in the selected
configuration are included with the package.
Are The Graphics Separate Panels For Each Frame?
No. Each complete 2850mm wall uses one continuous fabric graphic spanning
its three FastFrame modules, helping produce a clean and uninterrupted
printed surface.
Can I Replace The Graphics Or Reconfigure The Stand?
Yes. Replacement graphics can be ordered separately, and the individual
FastFrame modules can be reused, rearranged or combined with additional
frames for future exhibition layouts.
