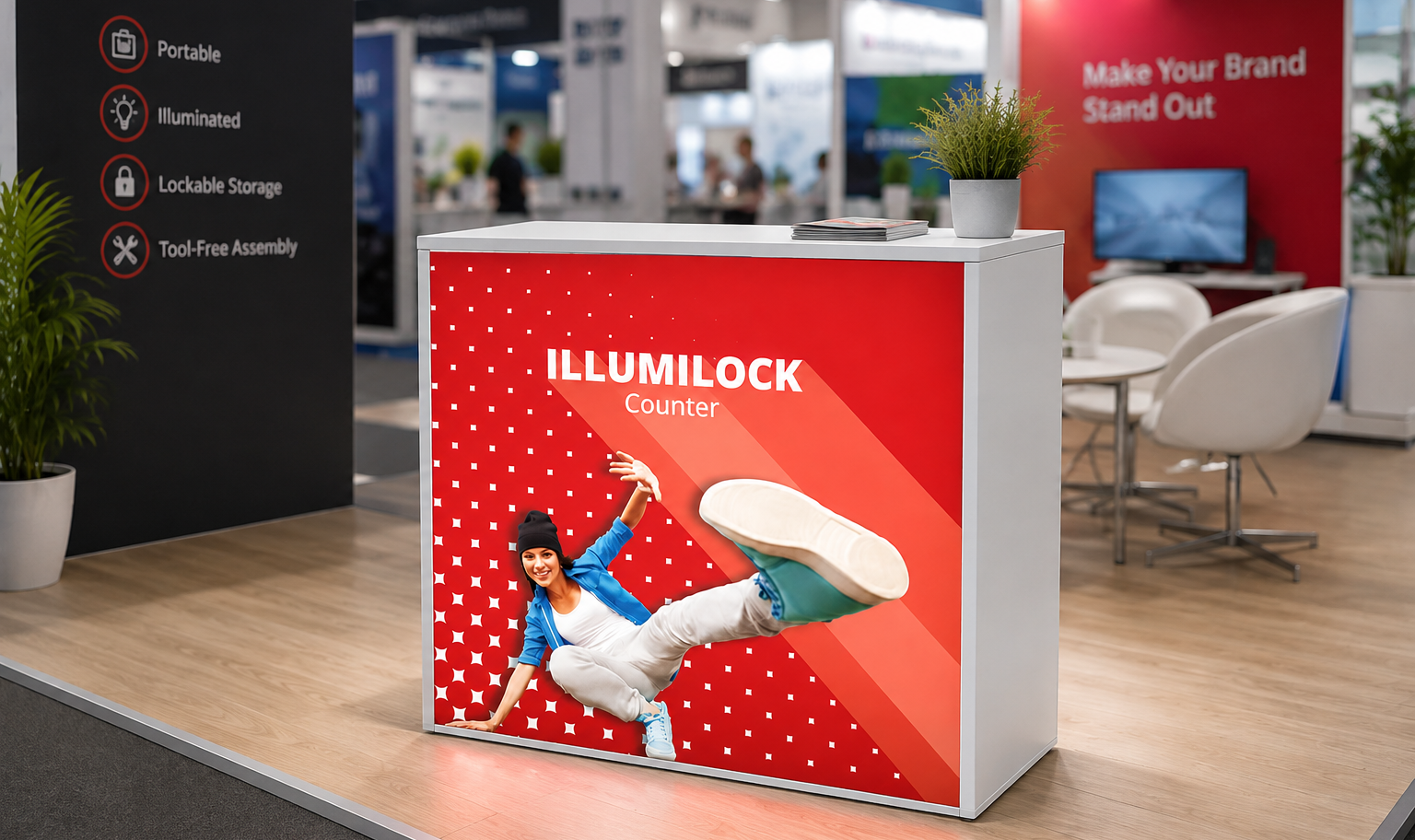

A substantial illuminated exhibition counter combining vibrant backlit branding with practical, lockable rear storage.
Designed for exhibitions, trade shows and events, the IllumiLOCK provides a generous 1030mm wide work surface, an illuminated SEG fabric graphic and concealed storage accessed through two lockable rear doors. When the event is over, the counter dismantles into two padded wheeled transport bags for easier handling and storage.
Illuminated Display
Bright integrated LED illumination brings the front-facing backlit fabric graphic to life.
Lockable Storage
Twin rear doors help discourage casual or opportunistic access to belongings stored inside.
Tool-Free Assembly
Numbered components connect without tools, with approximately 10 minutes allowed for setup.
Wheeled Carry Bags
The complete system separates into two purpose-made padded wheeled transport bags.

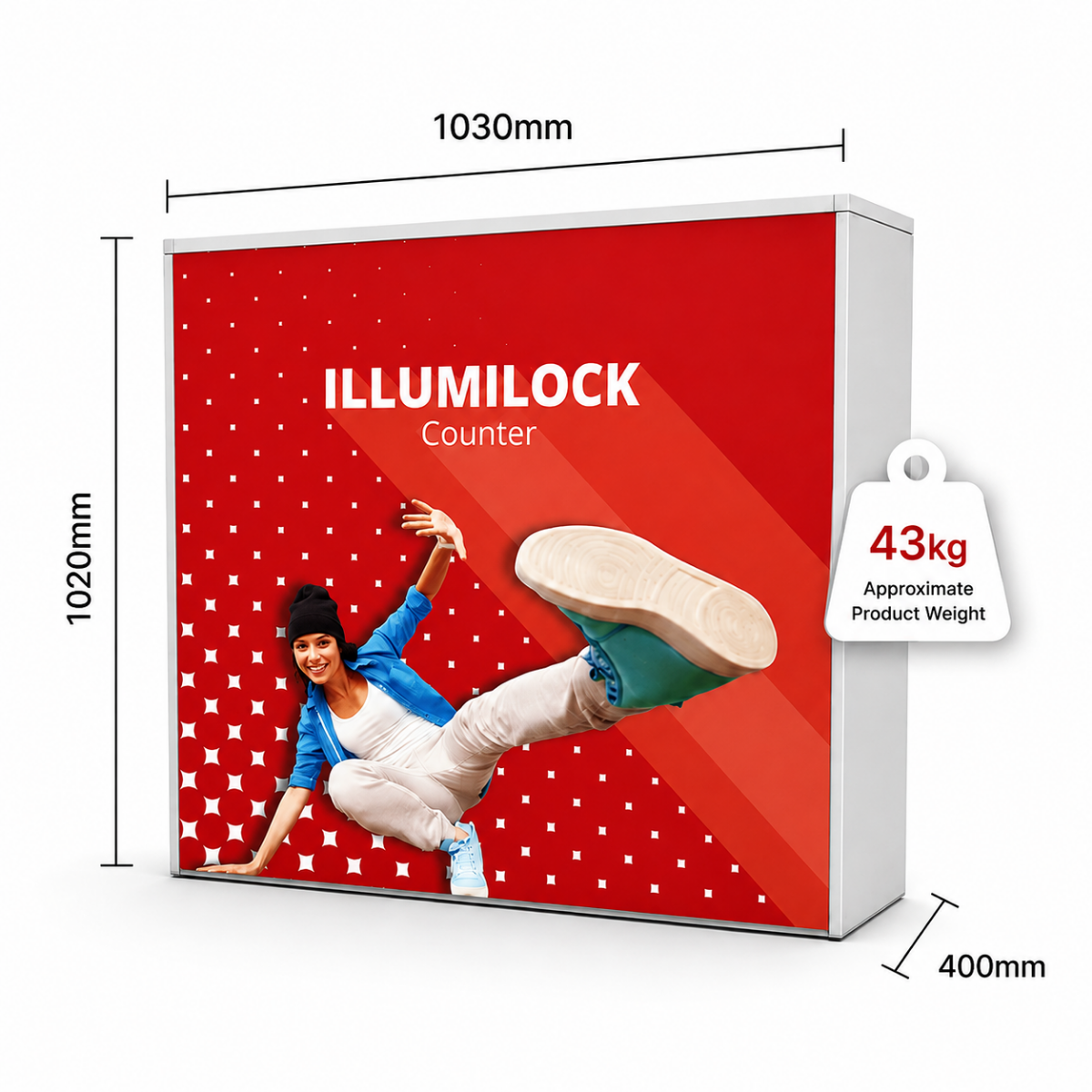

Dimensions & Product Weight
The assembled counter measures approximately 1030mm wide × 1020mm high × 400mm deep, with an approximate product weight of 43kg.
Lockable Storage for Busy Exhibition Stands
Lockable storage is relatively unusual on portable exhibition counters, despite being something exhibitors regularly ask for. The IllumiLOCK provides concealed space for samples, paperwork, bags and other items that you may prefer not to leave openly accessible on a busy stand.
Doors Closed
Twin lockable doors create a clean and practical rear finish.
Doors Open
The internal shelf creates useful, organised concealed storage.
A Practical Deterrent to Opportunistic Access
The locking doors are ideal for helping keep wandering hands away from belongings and materials stored behind your exhibition counter.
As with any portable exhibition furniture, the IllumiLOCK should not be regarded as a high-security storage cabinet. The locks are intended as a practical deterrent to casual or opportunistic access rather than protection against determined theft.
Specialist Backlit SEG Fabric Graphic
Integrated LEDs positioned within the horizontal sections of the frame illuminate the fabric graphic from behind, producing a bright and vibrant display across the front of the counter.
We print your graphic in-house using dye sublimation onto specialist polyester fabric developed specifically for backlit displays.
Dye sublimation permanently bonds the colour into the polyester fibres. This keeps the print flexible, allowing it to be folded for transport and storage without the image cracking or delaminating.
What is an SEG Graphic?
SEG stands for Silicone Edge Graphic. A flexible silicone strip is sewn around the perimeter of the printed fabric and pushed into a dedicated channel within the aluminium frame. This tensions the fabric to create a smooth, professional display surface.
Printed & Sewn In-House
Both printing and sewing are completed by Printdesigns. Your graphic therefore arrives fully finished with its silicone edging already attached and ready to push into the counter frame.
Replacement Graphics Available
The counter hardware is designed to be reused. When your branding, campaign or event changes, remove the existing SEG fabric and replace it with a newly printed panel.

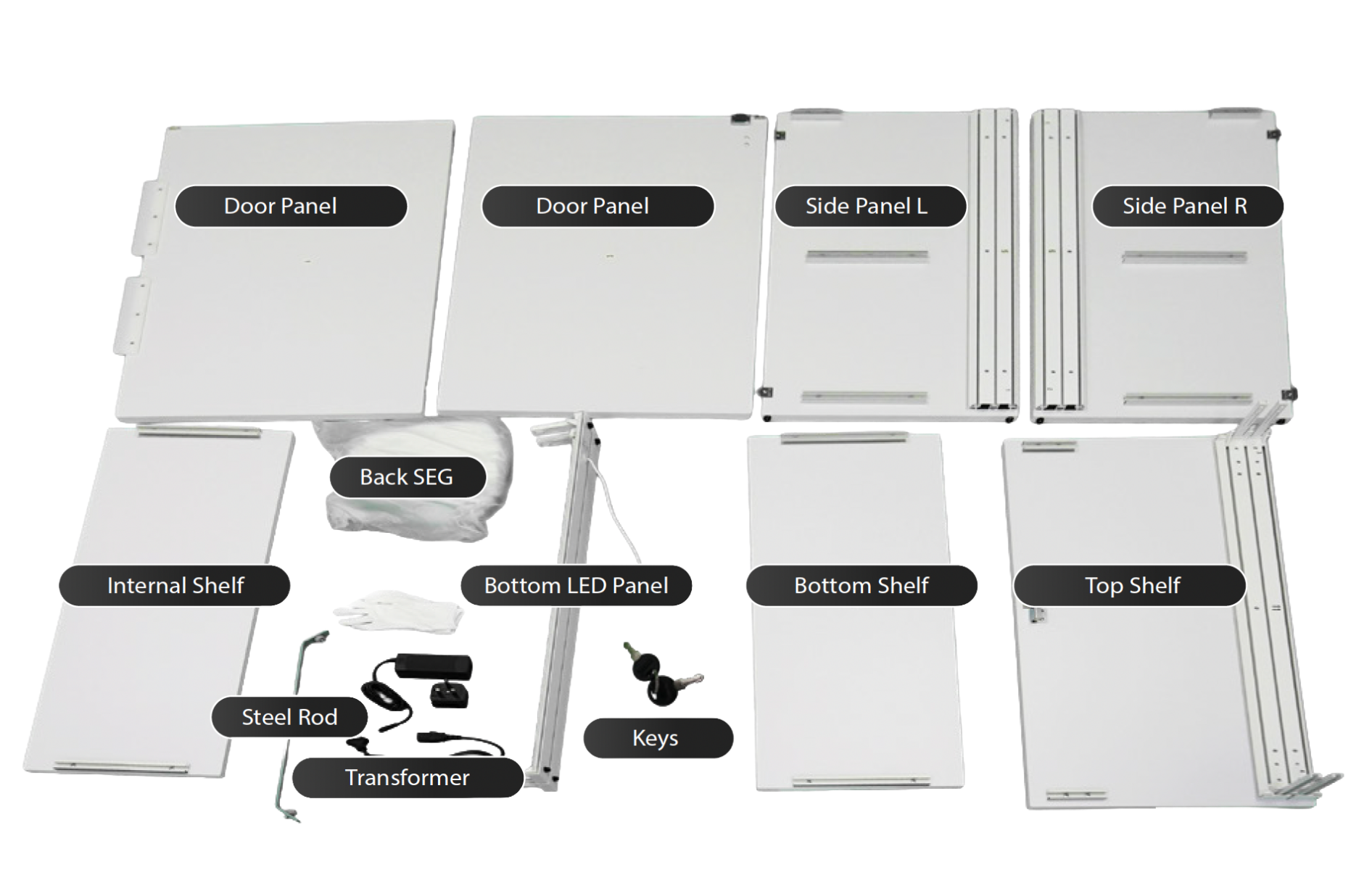

The IllumiLOCK is supplied as a complete printed package including the counter hardware, internal shelf, lockable doors, LED lighting system, transformer, keys, finished backlit SEG fabric graphic and two padded wheeled transport bags.
Approximately 10 Minute Assembly
The IllumiLOCK is substantial once assembled but separates into individual components for transport.
Assembly is completely tool-free. We recommend allowing approximately 10 minutes, although regular users familiar with the system may set it up more quickly.
Illustrated Instructions Included
Our downloadable instructions show the individual components, complete assembly sequence, lighting connections and transport arrangement.
At approximately 43kg, the IllumiLOCK is considerably more substantial than a lightweight promotional counter. The rigid construction, shelving, doors and lighting create a much more furniture-like counter when assembled, while the two wheeled bags divide the components for transportation.

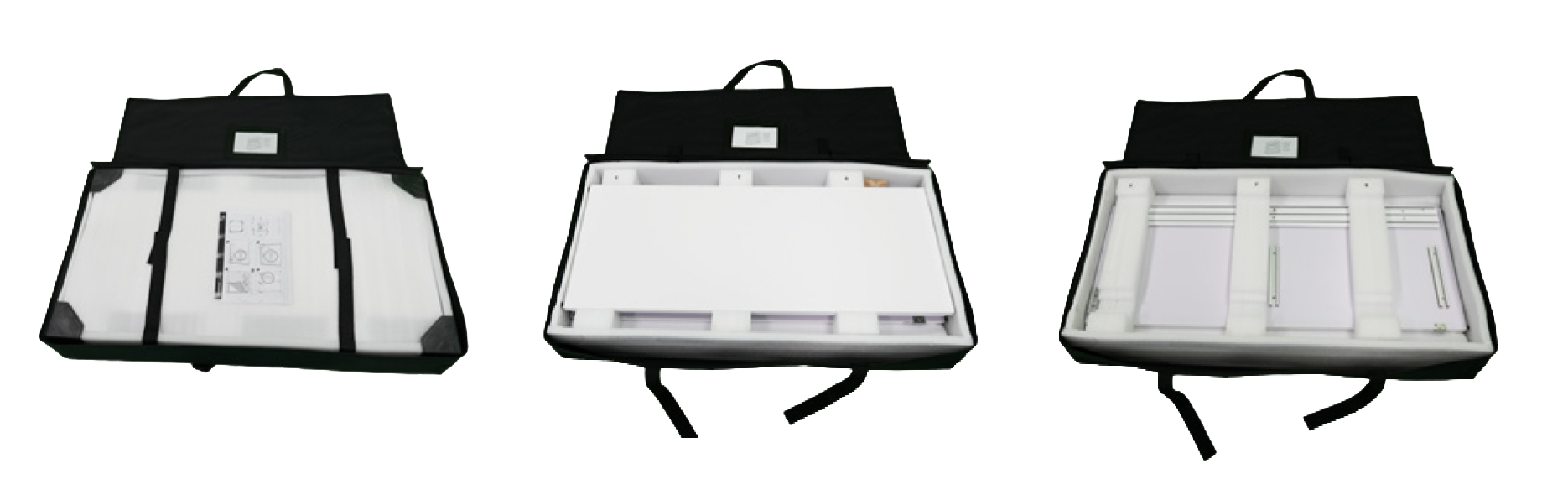

Transport Bag 1
1150 × 580 × 170mm
Approx. weight: 25.5kg

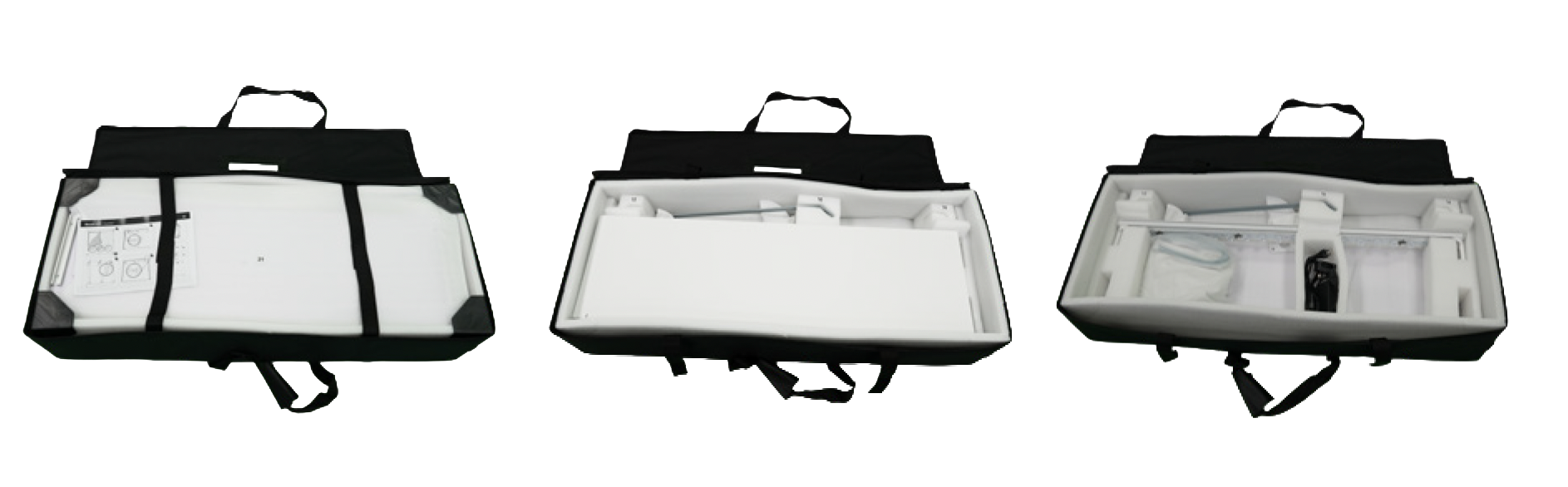

Transport Bag 2
1180 × 460 × 240mm
Approx. weight: 17.2kg
Technical Specification
Overall Dimensions
1030mm (W) × 1020mm (H) × 400mm (D)
Approximate Product Weight
43kg
Frame Construction
Powder-coated white aluminium
Panel Construction
Laminated white MDF
Aluminium Profile
80mm
Countertop Size
1030mm (W) × 400mm (D)
Maximum Countertop Load
45kg
Internal Shelf
1 included
Maximum Internal Shelf Load
35kg
Assembly
Tool-free, approx. 10 minutes
Graphic
Dye-sublimation printed backlit polyester SEG fabric
Lighting
Integrated edge-lit LED system
Rear Access
Two lockable doors
Transport
2 padded wheeled transport bags
Lighting & Power
Input Voltage
100–240V
Current
3.6A
LED Power
60W
Colour Temperature
6500K
Luminous Output
1200–1400 lm
Certification
CE Marked
Plug
EU plug supplied with UK adaptor
Cable Exit
Beneath the counter
Packed & Shipping Dimensions
Package
Dimensions
Weight
Transport Bag 1
1150 × 580 × 170mm
25.5kg
Transport Bag 2
1180 × 460 × 240mm
17.2kg
Shipping Box 1
1160 × 590 × 180mm
26.5kg
Shipping Box 2
1190 × 470 × 250mm
18.2kg
Frequently Asked Questions
Useful information about using, transporting and rebranding the IllumiLOCK Counter.
Is the IllumiLOCK Counter supplied with a printed graphic?
Yes. The complete package includes one custom printed backlit SEG fabric graphic, fully finished with silicone edging and ready to install into the frame.
Can I buy replacement graphics?
Yes. The fabric graphic is removable and replacement backlit SEG graphics can be ordered separately, allowing the same counter hardware to be reused for different campaigns, brands or events.
How secure is the lockable storage?
The lockable doors are intended to discourage casual or opportunistic access to items stored inside the counter. The IllumiLOCK is portable exhibition furniture and should not be treated as a high-security storage cabinet for valuable items.
How long does the counter take to assemble?
We recommend allowing approximately 10 minutes for assembly. No tools are required, and regular users familiar with the system may be able to assemble it more quickly.
How is the fabric graphic fitted?
A silicone strip is sewn around the edge of the printed fabric. This is pushed into the dedicated SEG channel around the aluminium frame, tensioning the graphic and creating a smooth display surface without tools or adhesives.
Can the printed graphic be folded?
Yes. The graphic is dye-sublimation printed onto polyester fabric, so it can be folded for transport and storage without the printed image cracking or peeling.
How portable is the IllumiLOCK Counter?
The counter weighs approximately 43kg in total, so it is more substantial than a lightweight promotional counter. For transport it breaks down into two padded wheeled bags weighing approximately 25.5kg and 17.2kg respectively.
What can I store inside the counter?
The internal compartment is suitable for literature, samples, bags and other exhibition materials. One internal shelf is included and has a stated maximum load capacity of 35kg.
Where does the electrical cable exit?
The power connection exits beneath the assembled counter, helping keep the electrical connection discreet during use.
Illuminated Branding, Practical Storage and a Proper Work Surface
The IllumiLOCK Counter is particularly well suited to use alongside illuminated exhibition walls, fabric lightboxes and other backlit display systems. Its combination of bright branding, lockable concealed storage and substantial countertop makes it an excellent reception, demonstration or customer-facing counter for professional exhibition stands.
