Portable outdoor digital advertising with rechargeable battery power
The 43" Outdoor Digital Android Battery A-Board combines a
700cd/m² high-brightness display, rechargeable battery and integrated
Android 14 media player in a portable digital signage solution designed for commercial
indoor and outdoor use.
The latest generation features an IP56-rated weather-resistant enclosure,
up to 27 hours of battery operation and a significantly reduced
5.5-hour full charging time. Rugged integrated castors allow the display
to be wheeled between storage and its operating position without needing to carry the unit.
Ideal for restaurants, cafés, retail stores, hotels, leisure venues, visitor attractions,
receptions and events, the screen allows you to show images, video, menus, promotions and
customer information without the ongoing cost of replacing printed graphics.
Content can be updated locally by USB at no ongoing cost, prepared using the free Playlist
Editor software, or managed remotely by selecting a MySignage Portal CMS
option when ordering.
Latest generation
Faster charging, improved weather protection and easier day-to-day operation
Full recharge: approx. 5.5 hours
700cd/m²
High brightness
Full HD commercial display for bright indoor spaces and everyday outdoor use.

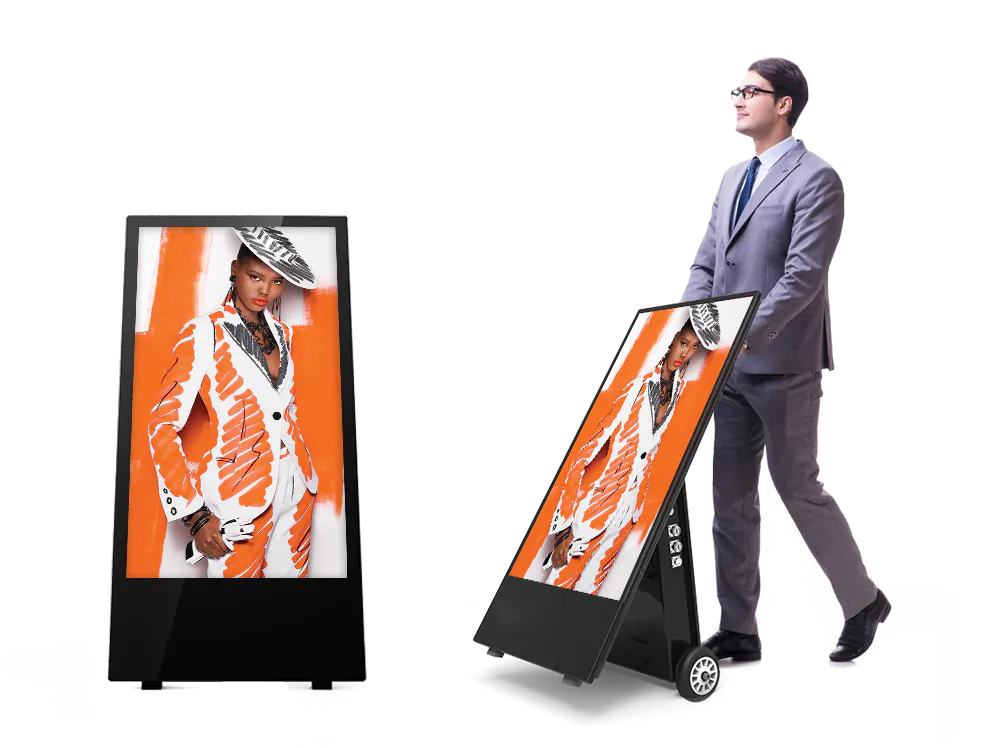

The display has been designed to be wheeled rather than carried. A rear guiding handle and
integrated heavy-duty castors allow it to be moved between storage and its operating position
with considerably less effort than carrying a conventional commercial display.
At 39.3kg net weight, the 700cd/m² model is lighter than the brighter
1,500cd/m² version while retaining a robust fixed-body construction. The specialised
castors are designed to help reduce vibration when moving across uneven surfaces.
Once positioned, the integrated locking arrangement can be used to secure the wheels and help
prevent unwanted movement.
High brightness display
700cd/m² brightness for clear everyday viewing
The 43-inch screen uses a 700cd/m² high-brightness panel suitable for
bright commercial environments and general outdoor applications. It provides Full HD
1920 × 1080 resolution with a wide 178° viewing angle.
A built-in ambient light sensor automatically adjusts screen brightness
according to surrounding conditions. This helps maintain suitable visibility throughout
the day while also helping maximise battery runtime.
The LCD is also designed to resist the blackening defect that can affect unsuitable displays
exposed to intense heat. The panel is specified to support surface temperatures of up to
110°C.
The latest-generation enclosure carries an IP56 rating, helping protect
the screen's internal components against wet weather and airborne dust. This makes it
suitable for everyday outdoor commercial use.
Weather-protected connection points incorporate individual protective covers, while the
robust fixed construction provides a durable housing for the display, battery and internal electronics.
The IP56 rating does not mean the display should be submerged or pressure washed. The unit
should only be operated within the manufacturer's stated environmental limits.
Tempered anti-glare glass
The LCD is protected by a tempered glass front with an anti-glare treatment designed
to diffuse reflections without unnecessarily reducing screen brightness. This helps
improve readability while protecting the screen beneath.
Robust fixed construction
Unlike a conventional folding pavement sign, the digital A-board uses a rigid
non-folding construction designed to provide a stable platform for the screen,
battery and electronics and to withstand repeated commercial use.
Battery performance
Up to 27 hours runtime with rapid 5.5-hour charging
27 hours
Maximum stated runtime*
5.5 hours
Approximate full charging time
39,200mAh
Integrated lithium-polymer battery
The integrated lithium-polymer battery provides up to 27 hours of operation from a full
charge. The current-generation charging system reduces full charging time to approximately
5.5 hours.

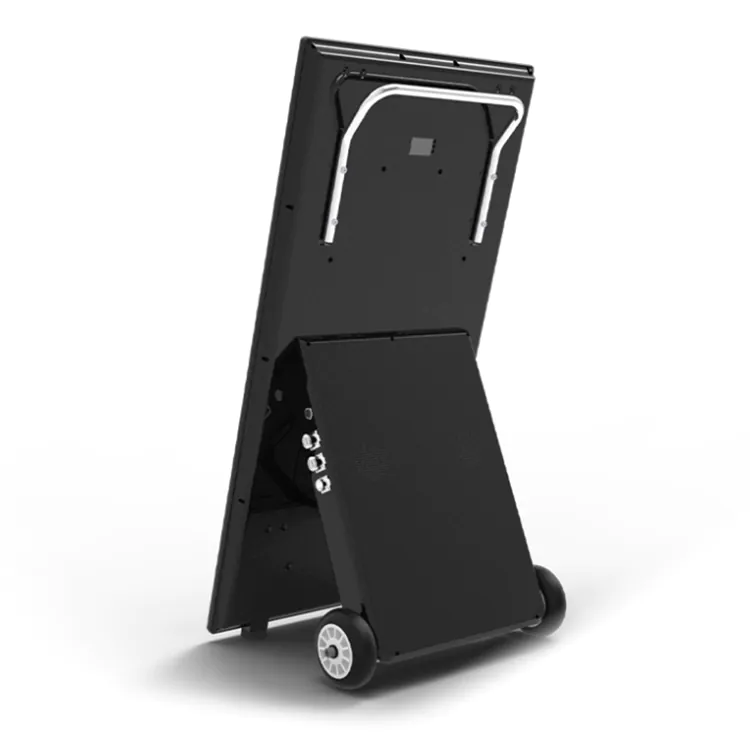

A rear charge-level indicator displays remaining battery capacity together with an estimate
of available running time, allowing staff to see when the unit is likely to need recharging.
The battery is housed separately from the screen's other internal components. The display
can also operate while connected to its charger, providing the flexibility to use it from
battery or mains power when required.
*Runtime is based on average running time and is subject to variation according to screen
brightness, content, ambient conditions, usage and battery condition.
Content management
Update content locally or manage it remotely
The integrated Android 14 media player allows the display to be used as a straightforward
USB plug-and-play screen or combined with MySignage Portal CMS for remote content management.
Dual-band Wi-Fi is built into the hardware, while an optional 4G/SIM configuration is also
listed by the manufacturer for applications where suitable Wi-Fi is unavailable.
Standard
USB Plug & Play
Copy compatible images and videos to an empty USB memory stick and insert it into one
of the display's USB ports. The media is copied to the screen's internal storage.
This is a practical choice for individual displays or businesses that are happy to
update content locally.
Remote management
MySignage Portal CMS
Choose a one-year, three-year or lifetime CMS option to upload media, organise playlists
and schedule content remotely over an internet connection.
This is particularly useful for frequently changing campaigns, multiple displays or
screens positioned away from your main office.
Please note: Wi-Fi hardware is built into the display, but remote portal access
is only included when a MySignage Portal CMS option is selected.
Create scheduled playlists without a CMS subscription
USB operation does not limit you to simply loading a collection of files and allowing them
to play continuously. The free Windows Playlist Editor gives plug-and-play users greater
control over their presentation.
Create playlists, organise images and videos in your preferred order, set individual image
durations, choose transitions, add compatible audio and schedule different content for
different times of the day.
The latest user manual, specification information and Playlist Editor software are available
under the Downloads tab on this product page.
Integrated Android 14 commercial media player
The integrated Android 14 player uses an RK3568 64-bit quad-core processor with
4GB RAM and 32GB internal storage, providing a substantial upgrade over
earlier generations of this product.
Supported media includes Full HD H.264 and H.265 video at up to 60 frames per second,
MPG, AVI and MP4 video files, AAC and MP3 audio, and JPG and PNG images. Two integrated
5W speakers provide audio when required.
Dual-band 2.4GHz/5GHz Wi-Fi and Bluetooth 5.0 are built in. Compatible third-party Android
applications may also be installed where appropriate, subject to software compatibility.
Optional branding and personalisation
The lower panel area of the A-board can be personalised with a printed decal featuring your
company logo, branding or other graphics. If required, we can arrange for the decal to be
produced and fitted before dispatch for an additional charge.
Where can the outdoor digital A-board be used?
Restaurants & cafés
Promote menus, daily specials, takeaway offers and time-sensitive promotions.
Retail & shopping
Advertise products, sales, opening hours, loyalty schemes and seasonal campaigns.
Hotels & hospitality
Display welcome messages, event information, dining promotions and guest notices.
Events & venues
Show schedules, wayfinding, sponsor messages and promotional content.
Leisure & attractions
Display visitor information, activities, class times and admission messages.
Reception & entrances
Welcome visitors and present directional, promotional or informational content.
*Runtime is based on average running time and is subject to variation according to operating
conditions, screen settings, usage and battery condition. Specifications may be updated by
the manufacturer without notice.
What's included?
43" outdoor digital Android battery A-board
Mains power cable
Battery charger
Remote control with batteries
Quick Start Guide
User manual access via QR code
Documentation and software
The latest user manual, specification information and Windows Playlist Editor software
are available under the Downloads tab on this product page.
Please read the operating guidance before first use, particularly the instructions covering
charging, movement, cleaning, supported media and outdoor operation.
Frequently asked questions
Can I update the display remotely?
Yes. Select a MySignage Portal CMS option when ordering and the display can be managed
remotely over an internet connection. The standard version can still be updated locally by USB.
How do I update the standard USB version?
Copy compatible images and videos to a USB memory stick and insert it into the display.
The content is transferred to the screen's internal storage for playback.
Is this suitable for direct sunlight?
The 700cd/m² model is suitable for bright commercial environments and general outdoor use.
For very exposed locations or prolonged strong direct sunlight, the brighter
1,500cd/m² version
is usually the more appropriate choice.
How long does the battery last?
The manufacturer states an average maximum runtime of up to 27 hours from a full charge.
Actual runtime varies according to brightness, content, ambient conditions, settings,
usage and battery condition.
How long does the display take to recharge?
The current-generation model has a quoted full charging time of approximately
5.5 hours.
Can it run from mains power?
Yes. The display can operate while connected to its charger as well as from its internal battery.
Can it be used in the rain?
Yes. The enclosure is IP56 rated for outdoor use in wet weather. It should not be submerged
or pressure washed and should only be used within the manufacturer's stated environmental limits.
Is the display easy to move?
The unit weighs 39.3kg but is designed to be moved using its rear handle and integrated
castors rather than being carried.
What size should my content be?
The physical screen is portrait. For best results, artwork and video should generally be
created in a portrait 9:16 format, typically 1080 × 1920 pixels.
Can the lower panel be branded?
Yes. A printed decal can be produced and fitted to the lower panel before dispatch to
incorporate your logo or other branding. Please contact us for pricing.
A flexible digital alternative to a traditional pavement sign
This 43-inch outdoor digital A-board combines portable battery operation, high brightness,
weather-resistant construction and rapid charging in one versatile commercial display.
Instead of being restricted to a single printed message, you can rotate promotions, display
video, update menus and schedule different content throughout the day.
